This is a powerful sport utility snowmobile developed to be the ultimate tool for any go-getter. With XTRA-ACTION Adjustable Rear Suspension, the Norseman® can adapt to any task. It delivers a clean, consistent and responsive performance for every ride and offers the additional wind protection needed with an 18-inch windshield.
Available Sleds
153″/2.25″
PowerClaw
Push Button Electric
ARS
Fire Red/Black
Track/Lug
Track Type
Starter
Suspension
Color
LEARN MORE
SERIOUS POWER

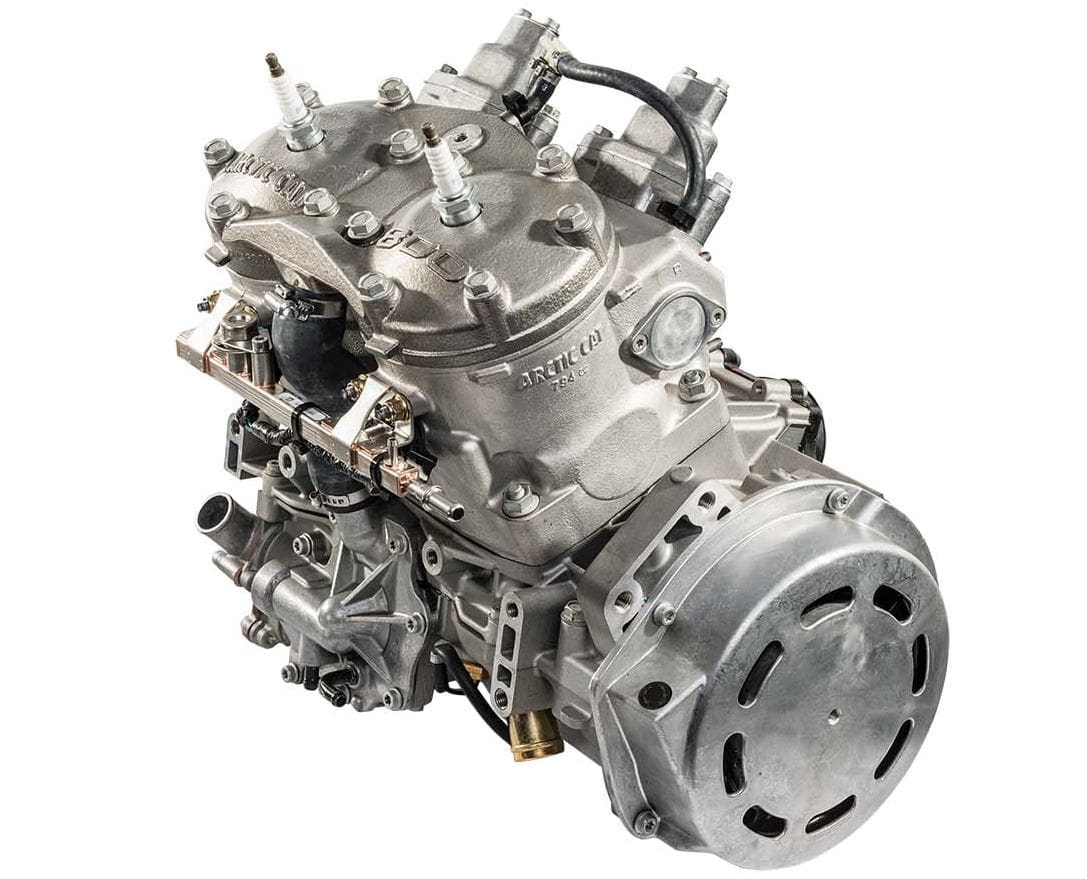

8000 SERIES C-TEC2 ENGINE
The 8000-series, C-TEC2™ twin cylinder, two-stroke engine is the heart and soul of the Norseman X. This heavy-duty engine is designed with the most difficult tasks in mind- hauling, towing and climbing through the snow.
The next-generation 8000-Series-C-TEC2 engine delivers a new level of clean Arctic Cat 2-stroke engine performance and technology. This new 794cc C-TEC2 twin features:
– Optimized cylinders, pistons, combustion chamber, flywheel, and fuel rail.
– Our signature fuel calibration strategy and Arctic Power Valve system with 3-stage control of the auxiliary exhaust ports via side valves
– ECM-controlled electronic oil pump
– Batteryless EFI
– Exhaust Pipe Temperature Sensor (EPTS)
– Knock sensor
– Engine reverse technology
This advanced technology designed by Arctic Cat and built in St. Cloud, Minnesota delivers:
– Ultra-clean, more responsive performance
– Enhanced power in the 165-hp class of engines
– Precision oil injection
– Exceedingly robust and lightweight design
VERSATILE DESIGN
ADJUSTABLE SKI STANCE
35.5-41.5-in. adjustable ski stance allows the Norseman X to adapt to whatever conditions it may face. This exceptional versatility makes it simple to switch from task to task, regardless of how different they may be.
STRIKING APPEARANCE, INTENTIONAL DESIGN
PAINTED CHASSIS
Just because the Norseman is designed to work hard doesn’t mean it can’t look good in the process. Keep your snowmobile looking top-notch with a painted chassis. Not only does it look striking, but this paint also prevents corrosion, keeping your vehicle in excellent condition over time and reducing standard wear-and-tear.
SMOOTH PERFORMANCE
ADAPT CVT SYSTEM
With its lightweight, narrow design that increases performance and belt life, as well as the industry’s only self-adjusting clutch, the ADAPT™ CVT system provides better throttle response, smoother power delivery, and a ride like no other.
The XTRA-ACTION Adjustable Rear Suspension is built to tackle any challenge or condition you face. The adaptable design can be locked for increased traction while towing heavier loads or unlocked for improved flotation when backing up in deep snow.
READY TO GO
PUSH-BUTTON ELECTRIC START
The convenience and ease of electric start lets you get up and moving right away.
VEHICLE SPECS
ENGINE
NORSEMAN X 8000
Engine Type
8000 Series, 2-Stroke
Displacement (cc)
794cc
Cooling
Liquid
Cylinders
2
Bore x Stroke (mm)
85 x 70 mm
Lubrication
Electric Injection
Ignition
Digitally Controlled CDI
Engine Starter Output
270W @ 3000 RPM
Fuel Delivery
Dual Stage Injection
Exhaust
APV w/ Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler
Fuel Capacity
13.7 gal.
Oil System Capacity
3.25 qt.
Coolant System Capacity
7.6 qt.
Minimum Octane
91v
POWERTRAIN
NORSEMAN X 8000
Drive Clutch
ADAPT
Driven Clutch
ADAPT
Drive System
Arctic Drive System
Brakes
Stealth Hydraulic Master Cylinder
Clutch Calibration
0-5,000 ft.
Gearing
21/49
Chain Pitch
90
Track Drive Sprocket
8 Tooth, 3.0 pitch, exvolute
Reverse
Push-Button Engine
SUSPENSION
NORSEMAN X 8000
Front Suspension
Arctic Race Suspension (ARS)
Ski Shocks
Arctic Cat IFP 1.5
Sway Bar
N/A
Front Travel
9 in.
Rear Suspension
XTRA-ACTION Rear Suspension with adjustable torsion springs, and Torque-Sensing Link Rear Arm
Front Track Shock
Arctic Cat IFP 1.5
Rear Track Shock
Arctic Cat IFP 1.5
Rear Travel
13.5 in.
DIMENSIONS
NORSEMAN X 8000
Overall Chassis Length
132 in.
Overall Chassis Width
45.5-51.5 in.
Overall Chassis Height
52 in.
Track Type
Power Claw
Track Width
15 in.
Track Length
153 in.
Lug
2.25 in.
Pitch
3.00 in.
Ski Stance
35.5-41.5 Adjustable
Ski Type/Width
ProUte – 10/8
Runner Type
Single Runner
INSTRUMENTATION
NORSEMAN X 8000
Type of Gauge
Deluxe Digital
Speedometer
Digital
Tachometer
Digital
Odometer
Digital
Fuel
Digital
Oil
Indicator Light
Coolant
Digital/Indicator Light
Clock
Digital
Battery Voltage
Digital
Altimeter
Digital
Hours
Digital
FEATURES
NORSEMAN X 8000
Color
Black/Fire Red
Heat Exchanger
Front/Long Tunnel
Starter
Electric Push Button
Handlebars
Hooked w/ Grab Handle
Lighting
Dual Halogen 2-Bulb
Seating
Mountain
Storage Components
Tunnel Bag
Standard Accessories
Norseman Bag, 12V Outlet, Sport Front Bumper, Hand & Thumb Warmer, Brake Disc, Standard Steering, Rear Rack, Tether Switch, Pivot Tow Hitch
Windshield
14 in. Mid-height
*Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
