Why choose between the thrills of on-trail riding and the adventure of venturing into the deep snow when you can have both? Riot blends trail and backcountry performance seamlessly for the ultimate adaptable ride.
Available Sleds
146″/1.60″
Cobra
Push Button Electric
ARS II w/ ATAC
Black/Medium Green
Track/Lug
Track Type
Starter
Suspension
Color
LEARN MORE
LEGENDARY POWER

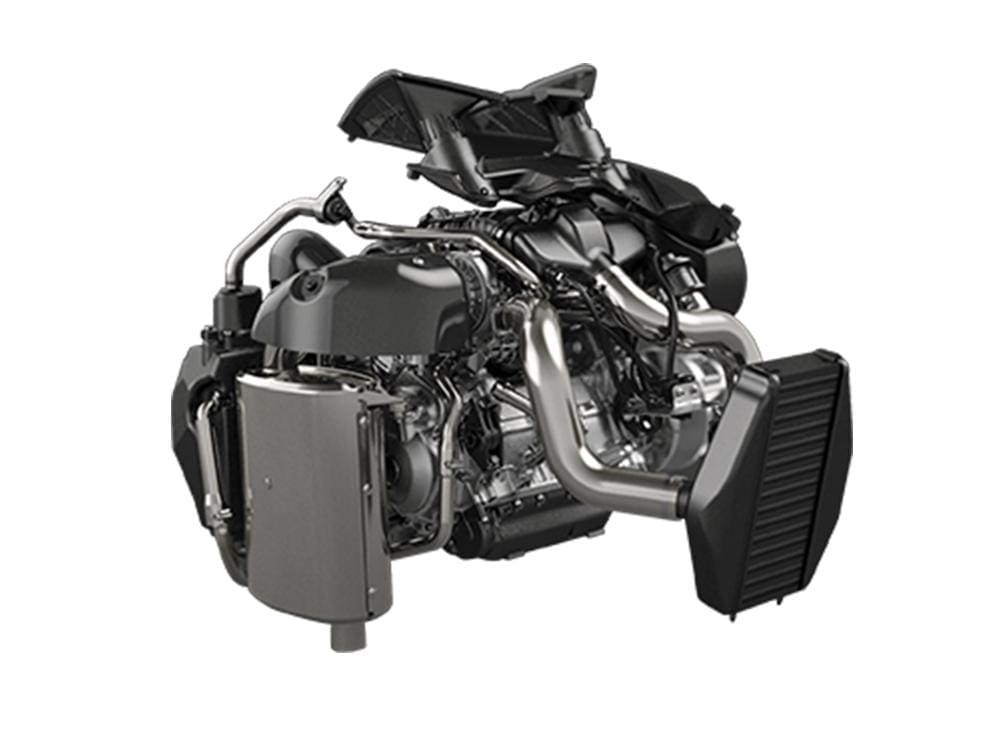

9000-SERIES TURBOCHARGED ENGINE
The Riot 9000 doesn’t mess around. Equipped with our biggest, most powerful engine, this sled delivers max horsepower in any conditions. The 4-stroke, 998cc engine offers enough power that no other snowmobile will even come close.
Conquer whatever the terrain throws at you with our biggest, most powerful engine. The 9000-series C-TEC4 turbocharged three-cylinder engine delivers max horsepower in any conditions.
The ultimate 4-stroke powerhouse, it produces 200HP-class performance at 8750 RPM. This 998cc engine features ultra-quick throttle and turbo response from an intercooled turbo, plus a DOHC design that’s matched with 4-hole fuel injectors to create maximum performance with minimal weight.
You also get engine braking control via an idle speed circuit and engine mapping, lightweight aluminum cylinders, and a press forged crankshaft.
INTUITIVE HANDLING
ELECTRONIC POWER STEERING
With Electronic Power Steering (EPS), this is a next-level experience. Unmatched control, easier turns, and intuitive handling will upgrade your ride more than you could imagine.
SMOOTH POWER DELIVERY
ADAPT™ CVT
The lightweight, durable ADAPT™ CVT System is the industry’s only self-adjusting clutch. ADAPT has an idler bearing that keeps belt temperature down, helping belts stay tighter and giving you a smoother takeoff and consistent power delivery at slow speeds.
The uncoupled CROSS-ACTION rear suspension provides unparalleled agility from powder to hardpack. The design enables the front and rear halves of the suspension to move independently, so riders enjoy excellent cornering and bump absorption on the trail, as well as off-trail weight transfer.
The CROSS-ACTION skidframe creates a playful ride quality, with more weight transfer during acceleration, great performance in deep snow, and outstanding comfort and traction over big bumps in all snow conditions. Arctic Cat’s Torque-Sensing Link allows a lower and more consistent track tension, plus an adjustable spring preload and a 3-wheel rear axle assembly. The CROSS-ACTION suspension offers 13.5 inches of travel and comes in a 146-inch length with ice-scratchers.
CONFIDENCE-INSPIRING HANDLING
ARS™ II Front Suspension
The race-proven ARS II front suspension delivers superior cornering and more ground clearance for an even better ride – on or off trail. The forged aluminum spindles are 1.5 inches taller from ski to the lower arm, and it features rigid upper A-Arms for optimal control and durability.
The evolution of Arctic Race Suspension (ARS) is here. ARS II gives you better bite on corners and increased ground clearance to deliver more confidence- on or off trail. We made the forged aluminum spindles 1.5 inches taller from the ski to the lower arm, and gave it more rigid upper A-Arms. Plus, a revised geometry delivers a new roll-center and adjustable cambers, and a swaybar makes for flatter, more predictable cornering on hard pack trails.
EASIER STEERING
G2 ProClimb Skis
The lightweight G2 ProClimb™ 7-inch mountain ski is tapered to stay on top of the snow. The ski works in tandem with front suspension spindles for easier steering and better deep snow performance.
ADAPT TO TERRAIN
ADJUSTABLE SKI STANCE
An adjustable 41.5- to 43.5-inch ski stance provides the flexibility to ride in a wide variety of snow conditions. Narrow it up for better agility in the backcountry or widen it out for a flatter, more stable trail ride.
RIDE BOLDLY
REINFORCED RUNNING BOARDS
With new rugged styling and improved durability, Riot’s running boards are reinforced with an extrusion for extra rigidity and are designed to take the impact when you send it.
VERSATILE SUSPENSION
ATAC® Adjustable On-the-Fly Suspension
The ATAC® Adjustable On-the-Fly Suspension immediately adjusts the FOX® ZERO iQS shocks with the push of a button to navigate changing snow conditions. Choose between two rider profiles, three firmness settings and engage lockout mode to ride your way.
VEHICLE SPECS
ENGINE
RIOT 9000 WITH ATAC
Engine Type
9000, 4-Stroke
Displacement (cc)
998cc
Cooling
Liquid
Cylinders
3-Turbocharged
Bore x Stroke (mm)
80 x 66.2 mm
Lubrication
Dry Sump
Ignition
Digital Controlled Coil Induction
Engine Starter Output
545 W @ 5000 RPM
Fuel Delivery
Electronic Fuel Injected (EFI)
Exhaust
Turbocharger w/ Stainless Steel Muffler
Fuel Capacity
9.9 gal.
Oil System Capacity
3.8 qt.
Coolant System Capacity
6.4 qt.
Minimum Octane
91
POWERTRAIN
RIOT 9000 WITH ATAC
Drive Clutch
ADAPT
Driven Clutch
ADAPT
Drive System
Arctic Drive System
Brakes
Stealth Hydraulic Master Cylinder
Clutch Calibration
0-10,000 ft.
Gearing
22/48
Chain Pitch
90
Track Drive Sprocket
9 Tooth, 2.86 Pitch, Exvolute
Reverse
Push-Button Engine
SUSPENSION
RIOT 9000 WITH ATAC
Front Suspension
ARS II w/ ATAC
Ski Shocks
FOX 1.5 ZERO iQS
Sway Bar
Standard
Front Travel
9 in.
Rear Suspension
CROSS-ACTION w/ 3-Wheel Rear Axle Assembly, Torque-Sensing Link Rear Arm, Adjustable Torsion Springs, and ATAC System
Front Track Shock
Arctic Cat IFP 1.5
Rear Track Shock
FOX 2.0 ZERO iQS
Rear Travel
13.5 in.
DIMENSIONS
RIOT 9000 WITH ATAC
Overall Chassis Length
132 in.
Overall Chassis Width
48-49 in.
Overall Chassis Height
48 in.
Track Type
Cobra
Track Width
15 in.
Track Length
146 in.
Lug
1.60 in.
Pitch
2.86 in.
Ski Stance
41.5-43.5 in. Adjustable
Ski Type/Width
G2 ProClimb- 7 in.
Runner Type
Single Runner with Carbide
INSTRUMENTATION
RIOT 9000 WITH ATAC
Type of Gauge
Deluxe Digital
Speedometer
Digital
Tachometer
Digital
Odometer
Digital
Fuel
Digital
Oil
Indicator Light
Coolant
Digital/Indicator Light
Clock
Digital
Battery Voltage
Digital
Altimeter
Digital
Hours
Digital
FEATURES
RIOT 9000 WITH ATAC
Color
Black/Medium Green
Heat Exchanger
Front/Long Tunnel
Starter
Electric Push Button
Handlebars
Hooked
Lighting
LED w/ Accent Light
Seating
Mountain
Storage Components
Standard Accessories
12V Outlet, Sport Front Bumper, Goggle Holder, Hand & Thumb Warmer, Heated Driver’s Seat, Ice Scratchers, Standard Brake Disc, Standard Steering, Tether Switch
Windshield
5.5 in. Race-Height
*Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
