Don’t let the compact frame fool you. The ZR® 120 is packed full of power and excitement, ready to create an unbeatable first ride for young snowmobilers and create a passion for the sport that can last a lifetime.
HIGHLIGHTS
123cc
Youth-Sized
Always-On
Safety Flag
In-Seat
4-Stroke Engine
Design
Headlights
and Tether Switch
Storage
Available Sleds
67″/0.75″
Cobra
Manual
AWS
Black/Medium Green
Track/Lug
Track Type
Starter
Suspension
Color
LEARN MORE

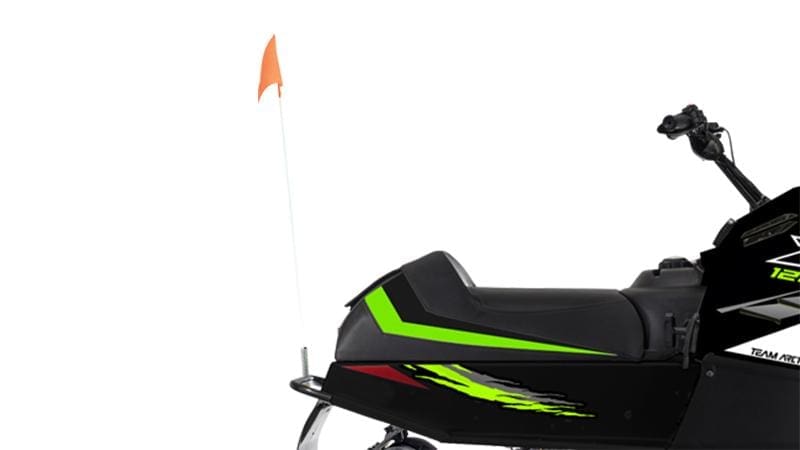

SAFETY FIRST
FLAG AND TETHER SWITCH
With a bright orange flag to keep your young riders highly visible and a tethered kill switch that shuts the engine off when disconnected, the ZR 120 emphasizes keeping young riders safe.
BUILT FOR SUPPORT
A-ARM FRONT SUSPENSION
This reinforced front suspension offers young riders the same support as our full-size snowmobiles, giving them the opportunity to hone their skills and develop confidence effortlessly.

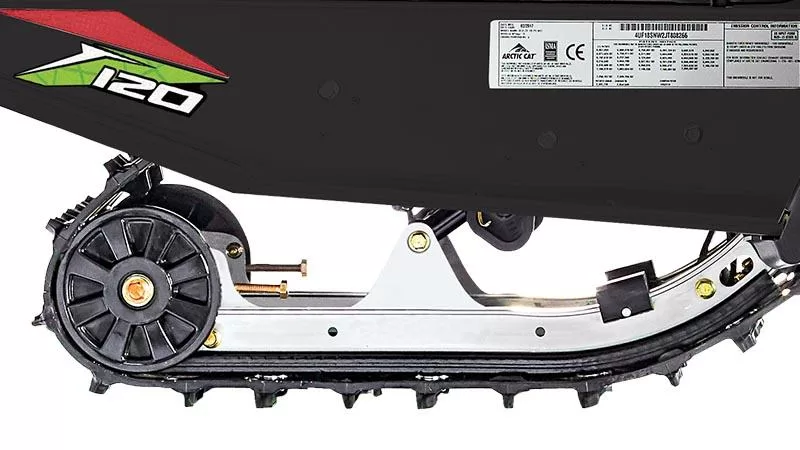

STABLE AND SMOOTH
SLIDE-RAIL REAR SUSPENSION
With responsive rear suspension, the ZR 120 can overcome tough terrain with ease, keeping the ride just as smooth, stable and safe as it is fun.
EFFICIENT DESIGN
123CC 4-STROKE ENGINE
This fan-cooled 4-stroke engine easily gives young riders a jam-packed day of fun. With a maximum speed of 8 mph, the ZR 120 gives snowmobilers an equally safe and thrilling ride.

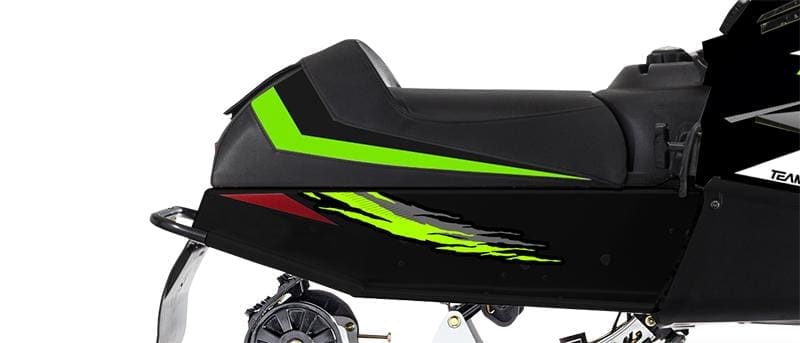

PACK IT IN
IN-SEAT STORAGE
Abundant in-seat storage in the rear guarantees young riders have everything they need to stay out on the trail all day long.
BRIGHTEN UP ANY RIDE
HALOGEN HEADLIGHT
This always-on headlight makes it easy to light up any ride by offering additional visibility and safety. It’s equipped with both low and high beams for versatility.
STAY WARMER FOR LONGER
COMFORT GRIPS WITH HANDWARMERS
Staying warm in the cold weather has never been easier. These comfort grips with handwarmers make those full days on the trail a no-brainer, no matter what conditions you face.
UNMATCHED CONTROL
COBRA™ TRACK
Cobra™ Track is equipped with cupped lugs, .75-inch paddles and traction teeth, offering better handling, more control, and all the grip needed for an awesome and a safe ride.
VEHICLE SPECS
ENGINE
ZR 120
Engine Type
120, 4-Stroke
Displacement (cc)
123cc
Cooling
Air
Cylinders
1
Bore x Stroke (mm)
56 x 50 mm
Lubrication
Oil Sump
Ignition
CDI
Engine Starter Output
55 W @ 3600 RPM
Fuel Delivery
B-18 Carburetor
Exhaust
Muffler
Fuel Capacity
0.5 gal.
Oil System Capacity
0.6 qt.
Coolant System Capacity
N/A
Minimum Octane
87
POWERTRAIN
ZR 120
Drive Clutch
Arctic Centrifugal
Driven Clutch
N/A
Drive System
N/A
Brakes
Adjustable Band
Clutch Calibration
0-5,000 ft.
Gearing
N/A
Chain Pitch
N/A
Track Drive Sprocket
4 Tooth, 2.59 Pitch, Exvolute
Reverse
N/A
SUSPENSION
ZR 120
Front Suspension
Arctic Wishbone Suspension (AWS)
Ski Shocks
Hydraulic Twin Tube
Sway Bar
N/A
Front Travel
4.5 in.
Rear Suspension
Slide-Rail, Adjustable Torsion Spring
Front Track Shock
N/A
Rear Track Shock
N/A
Rear Travel
4.5 in.
DIMENSIONS
ZR 120
Overall Chassis Length
73 in.
Overall Chassis Width
35-37 in.
Overall Chassis Height
34 in.
Track Type
Cobra
Track Width
10 in.
Track Length
67 in.
Lug
0.75 in.
Pitch
2.59 in.
Ski Stance
30.5 in.
Ski Type/Width
Youth – 4 in.
Runner Type
Single Runner
INSTRUMENTATION
ZR 120
Type of Gauge
N/A
Speedometer
N/A
Tachometer
N/A
Odometer
N/A
Fuel
N/A
Oil
N/A
Coolant
N/A
Clock
N/A
Battery Voltage
N/A
Altimeter
N/A
Hours
N/A
FEATURES
ZR 120
Color
Medium Green
Heat Exchanger
N/A
Starter
Manual
Handlebars
Straight
Lighting
Halogen 1-Bulb
Seating
Youth 120
Storage Components
In-Seat
Additional Accessories
N/A
Standard Accessories
Brake Disc, Hand Warmers, Safety Flag, Tether Switch, Youth Front Bumper, In-Seat Storage
Windshield
4 in. Low-Height
*Vehicle specifications are subject to change.
