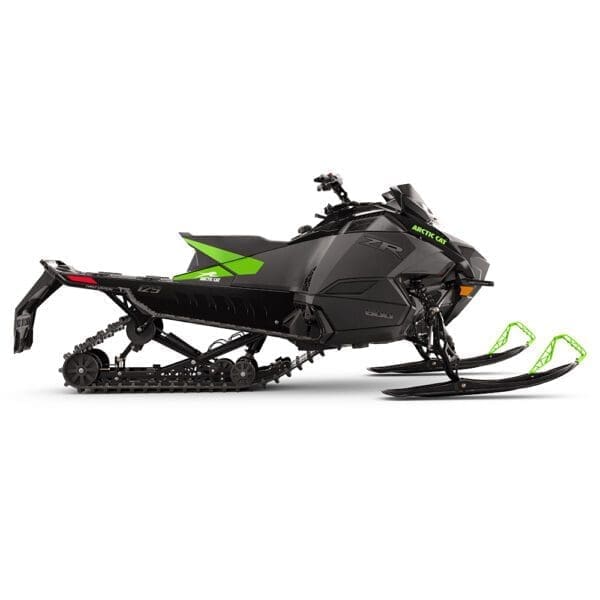

Whether you live for thrills and adventures or are searching for the perfect view, the ZR is the ultimate sled for trail performance. It’s time for the ride of your life.
4 AVAILABLE / CUSTOMIZE YOUR SLED
129″/1.25″
137″/1.25″
Ripsaw II
Push Button Electric
AWS
Galaxy Blue
Black
Track/Lug
Track Type
Starter
Suspension
Color
LEARN MORE
PEAK PERFORMANCE UNLOCKED
CATALYST Chassis
The revolutionary CATALYST platform has been built from the ground up to optimize every aspect of your ride, so much so that you’ll feel like you’re one with your sled. With enhanced ergonomics, a lower center of gravity, our exclusive laydown engine design, specially calibrated suspension and more, this changes everything.
With its lightweight, narrow design that increases performance and belt life, as well as the industry’s only self-adjusting clutch, the ADAPT CVT system provides better throttle response, smoother power delivery, and a ride like no other.
This robust, yet lightweight 599cc, 125-HP C-TEC2™ engine with Dual-Stage Injection (DSI) offers more than enough power to carve up the backcountry, while keeping the sled feeling weightless.
Featuring an ECM-controlled electronic oil pump, battery-free electronic fuel injection, exhaust pipe temperature sensor, knock sensor and more, this 600-series engine packs a serious punch. The crankshaft and fuel management system have been redesigned, and the exhaust servo increases torque by creating back-pressure at a lower RPM. The 599cc, 125-HP CTEC2 engine with DSI is mounted with our Torque Control Link (TCL) and a clutch guard.
ADAPTS TO TERRAIN
FOX® ZERO IQS SHOCKS
Designed for any terrain and any riding style, these premium FOX® ZERO IQS shocks are easily adjusted to fit your needs. With shocks like these, you’ll never go back.
No matter your riding style — or what the day brings — FOX ZERO iQS shocks will be ready.
Featuring soft, medium and firm compression settings that can be easily adjusted with a dial mounted on the remote reservoir or with a push of a handlebar-mounted button, FOX ZERO iQS shocks are built for changing terrain. Their remote reservoir delivers fade-free runs, while coil-over springs even out the bumpiest rides. Available in 1.5- or 2.0-inch diameters.
QUICKLY CONNECT
ATACH 4-Point Latching System
Adding accessories to your sled is a snap with this all new 4-point latching system. You can install and remove accessories in seconds, so no matter where you are, you can customize your sled with ease.
Rough rides are a thing of the past. With this industry-exclusive design that keeps the front arm engaged while the rear arm compresses, you’ll hardly feel a bump in the trail.
Unlock the true potential of a coupled suspension with our unique SLIDE-ACTION design. The front arm fits into a U-shaped slot that allows 0.5 inches of sliding movement, so the front won’t collapse whenever the rear arm compresses. That unique design gives you the full benefit of coupling: controlled ski lift during acceleration and the complete use of the front arm at all times. SLIDE-ACTION suspension also allows a lower and more consistent track tension with its Torque-Sensing Link, as well as three-position rear coupling block adjustability, adjustable spring preload and a durable 3-wheel rear axle assembly.
RIDE BOLDLY
Redesigned Running Boards
With the industry’s first low thermal conductive running boards, snow buildup is a thing of the past. These newly redesigned running boards prevent snow from sticking to minimize additional weight and improve durability.
CONFIDENCE-INSPIRING CONTROL
AWS 42 Front Suspension
The AWS 42 Front Suspension is engineered specifically to compliment the ZR 600. With ratio steering to reduce rider effort, you’ll experience more control.
AWS 42 is the culmination of over 40 years of experience with the Arctic Wish Suspension, optimized for trail riding. By centralizing the weight distribution, the suspension now sits directly under the rider, giving them more flexibility to move around on the sled, as well as giving them more control. This also puts more of the sled’s weight on the skis, improving balance.
With a progressive steering ratio, riders will feel the difference immediately. The sled will react to the slightest movement, making the ZR 600 feel like a natural extension of the rider’s body.
INSTANT SUSPENSION CONTROL
ADAPT™ CVT SYSTEM
Easily switch between soft, medium, and firm settings with the push of a handlebar-mounted button and watch the system immediately adjust your suspension.
APV with Tuned Pipe, Pipe Sensor and Stainless Steel Manifold and Muffler
Fuel Capacity
10.4 gal.
Oil System Capacity
3.00 qt.
Coolant System Capacity
5.3 qt. or 5.4 qt.
Minimum Octane
91
POWERTRAIN
ZR 600 WITH ATAC
Drive Clutch
ADAPT
Driven Clutch
ADAPT
Drive System
AC Trail Belt Drive
Brakes
Stealth Hydraulic Master Cylinder
Clutch Calibration
0-5,000 ft.
Gearing
30/58
Chain Pitch
Belt
Track Drive Sprocket
9 tooth, involute
Reverse
Push-Button Engine
SUSPENSION
ZR 600 WITH ATAC
Front Suspension
AWS 42
Ski Shocks
FOX 1.5 ZERO iQS
Sway Bar
Standard
Front Travel
8.2 in.
Rear Suspension
SLIDE-ACTION with 3 wheel rear axle assembly, coupling blocks, Torque-Sensing Link rear arm, and adjustable torsion springs with ATAC System
Front Track Shock
Arctic Cat IFP 1.5
Rear Track Shock
FOX 2.0 ZERO iQS
Rear Travel
13.5 in.
DIMENSIONS
ZR 600 WITH ATAC
Overall Chassis Length
118 in. or 126 in.
Overall Chassis Width
48-49 in.
Overall Chassis Height
47 in.
Track Type
Ripsaw II
Track Width
15 in.
Track Length
129 in. or 137 in.
Lug
1.25 in.
Pitch
2.86 in.
Ski Stance
41.25-42.25 in. Adjustable
Ski Type/Width
Trail- 6 in.
Runner Type
Long Dual Runner 4-Bolt with Carbide
INSTRUMENTATION
ZR 600 WITH ATAC
Type of Gauge
Deluxe Digital
Speedometer
Digital
Tachometer
Digital
Odometer
Digital
Fuel
Digital
Oil
Indicator Light
Coolant
Digital/Indicator Light
Clock
N/A
Battery Voltage
N/A
Altimeter
N/A
Hours
Digital
FEATURES
ZR 600 WITH ATAC
Color
Galaxy Blue or Black
Heat Exchanger
Front/Long Tunnel
Starter
Electric push-button
Handlebars
Hooked
Lighting
LED
Seating
Trail
Standard Accessories
12V Outlet, Sport Front Bumper, Goggle Holder, Standard Brake Disc, Standard Steering, Tether Switch, Tunnel Flare
Windshield
6-in. Low Height
*Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
