STARTING CAD* Plus destination charge and set-up.**
**Does not include destination charge or dealer set-up fee. Taxes, levies, duties, and other government-imposed fees not included. Prices and charges are subject to change. Price shown is for base model. Accessories, kits, and configurations are extra. Additional fees and charges may apply. Dealer prices may vary. Actual selling prices and terms are set by dealers. See dealer for details.
After decades of competing in and winning snowmobile races, we’ve learned a few things about what makes a champion. With the ZR® RR, we’ve taken that knowledge to create a no-compromise race replica ready to take on any challenge.
Available Sleds
137″/1.25″
Ripsaw II
Push Button Electric
ARS II
Black/Medium Green
Track/Lug
Track Type
Starter
Suspension
Color
LEARN MORE
NO ROUGH RIDES
SLIDE-ACTION™ REAR SUSPENSION
Rough rides are a thing of the past. With this industry-exclusive design that keeps the front arm engaged while the rear arm compresses, you’ll hardly feel a bump in the trail.
Unlock the true potential of a coupled suspension with our unique SLIDE-ACTION design. The front arm fits into a U-shaped slot that allows 0.5 inches of sliding movement, so the front arm won’t collapse whenever the rear arm compresses. That unique design gives you the full benefit of coupling: controlled ski lift during acceleration and the complete use of the front arm at all times. SLIDE-ACTION suspension also allows a lower and more consistent track tension with its Torque-Sensing Link, plus three-position rear coupling block adjustability, adjustable spring preload and a durable 3-wheel rear axle assembly.
LEGENDARY POWER
9000-SERIES C-TEC4™ TURBOCHARGED ENGINE
The ZR 9000 RR doesn’t mess around. Equipped with our biggest, most powerful engine, this sled is equipped to deliver max horsepower in any conditions. The 4-stroke, 998cc engine offers enough power that no other snowmobile will even come close.
Conquer whatever the terrain throws at you with our biggest, most powerful engine. The 9000-series C-TEC4 turbocharged three-cylinder engine delivers max horsepower in any conditions.
The ultimate 4-stroke powerhouse, it produces 200HP-class performance at 8750 RPM. This 998cc engine features ultra-quick throttle and turbo response from an intercooled turbo, plus a DOHC design that’s matched with 4-hole fuel injectors to create maximum performance with minimal weight.
You also get engine braking control via an idle speed circuit and engine mapping, lightweight aluminum cylinders, and a press forged crankshaft.
SMOOTH POWER DELIVERY
ADAPT™ CVT
With its lightweight, narrow design that increases performance and belt life, as well as the industry’s only self-adjusting clutch, the ADAPT CVT system provides better throttle response, smoother power delivery, and a ride like no other.
With Electronic Power Steering (EPS), every ride is a next-level experience. Unmatched control, easier turns, and intuitive handling will upgrade your ride more than you could imagine.

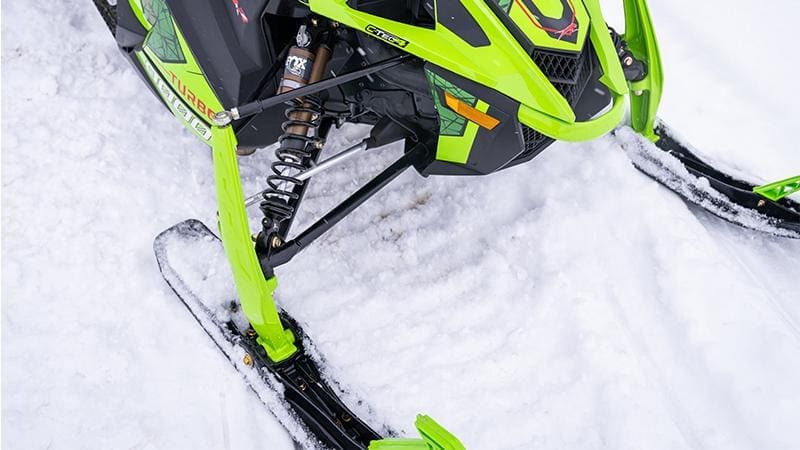

CONFIDENCE-INSPIRING CONTROL
ARS™ II Front Suspension
This innovative front suspension is built to optimize handling. With increased cornering bite, it’s easier than ever to tame the trails. More control means less fatigue, so you’ll be able to go farther faster on your ZR RR.
The next level of Arctic Race Suspension (ARS) is here. ARS II gives you better bite on corners and increased ground clearance to deliver more confidence on- or off-trail. We made the forged aluminum spindles 1.5 inches taller from the ski to the lower arm, and gave it more rigid upper A-Arms. Plus, a revised geometry delivers a new roll-center and adjustable cambers, and a swaybar makes for flatter, more predictable cornering on hard pack trails.

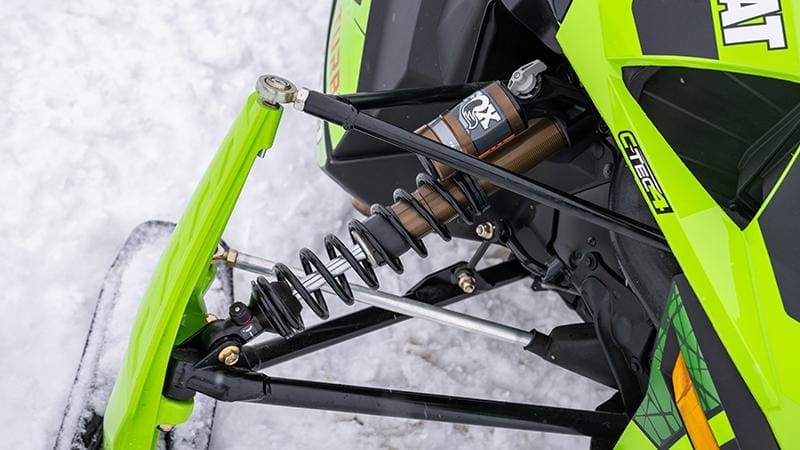

UNRIVALED SUPPORT
FOX ZERO KASHIMA-COATED SHOCKS
These FOX ZERO shocks are Kashima-coated for seamless action and are easily-adjustable with soft, medium and firm settings. Features 2.0-in diameter rear shocks and 1.5-in diameter front and ski shocks.

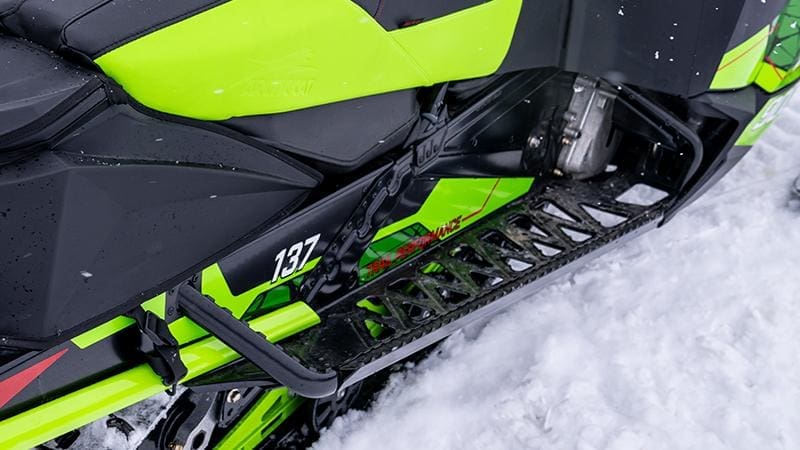

RIDE BOLDLY
REINFORCED RUNNING BOARDS
An uncompromising race-replica deserves competition-calibrated components like reinforced running boards for extra support.

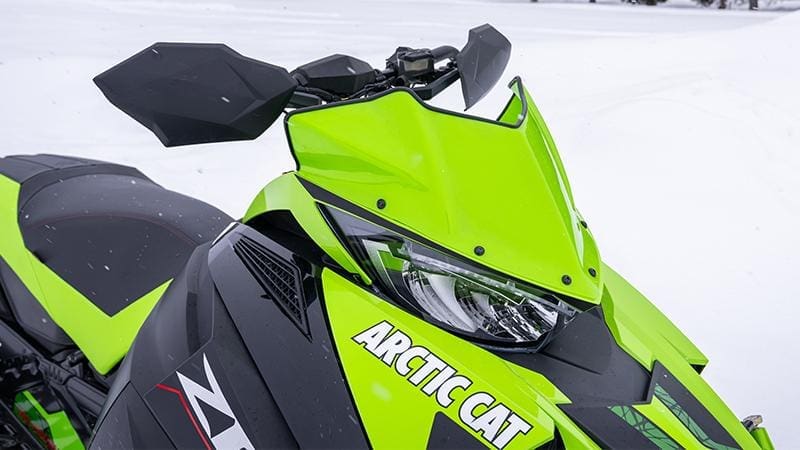

NEXT LEVEL VISIBILITY
RACE-HEIGHT WINDSHIELD
The ZR RR comes equipped with a lower-profile, race-ready 5.5-in windshield. Designed to enhance your visibility, it ensures you don’t miss any important trail markers or, more importantly, any of the views.
UNRIVALED SUPPORT
FOX® ZERO QS3R KASHIMA-COATED SHOCKS
These FOX ZERO shocks are Kashima-coated for seamless action and are easily-adjustable with soft, medium and firm settings. Features 2.0-inch diameter rear shocks and 1.5-inch diameter front and ski shocks.
BRIGHTEN ANY RIDE
LED Headlight
A premium LED headlight is crucial to optimize your visibility. Equipped with both high and low beams, this headlight casts an LED light pattern with great range and width.
VEHICLE SPECS
ENGINE
ZR 9000 RR
Engine Type
9000, 4-Stroke
Displacement (cc)
998cc
Cooling
Liquid
Cylinders
3-Turbocharged
Bore x Stroke (mm)
80 x 66.2 mm
Lubrication
Dry Sump
Ignition
Digital controlled coil induction
Engine Starter Output
545W @ 5000 RPM
Fuel Delivery
Electronic Fuel Injected (EFI)
Exhaust
Turbocharger with stainless steel muffler
Fuel Capacity
9.9 gal.
Oil System Capacity
3.8 qt.
Coolant System Capacity
5.7 qt.
Minimum Octane
91
POWERTRAIN
ZR 9000 RR
Drive Clutch
ADAPT
Driven Clutch
ADAPT
Drive System
Arctic Drive System
Brakes
Stealth Hydraulic Master Cylinder
Clutch Calibration
0-10,000 ft.
Gearing
24/50
Chain Pitch
92
Track Drive Sprocket
9 Tooth, 2.86 Pitch, Exvolute
Reverse
Push-Button Engine
SUSPENSION
ZR 9000 RR
Front Suspension
ARS II
Ski Shocks
FOX 1.5 ZERO QS3R KASHIMA
Sway Bar
Standard
Front Travel
9 in.
Rear Suspension
SLIDE-ACTION w/ 3 Wheel Rear Axle Assembly, Coupling Blocks, Torque-Sensing Link Rear Arm & Adjustable Torsion Springs
Front Track Shock
FOX 1.5 ZERO QS3 KASHIMA
Rear Track Shock
FOX 2.0 ZERO QS3R KASHIMA
Rear Travel
13.5 in.
DIMENSIONS
ZR 9000 RR
Overall Chassis Length
125 in
Overall Chassis Width
48-49 in.
Overall Chassis Height
48 in.
Track Type
Ripsaw II
Track Width
15 in.
Track Length
137 in.
Lug
1.25 in.
Pitch
2.86 in.
Ski Stance
42-43 in. Adjustable
Ski Type/Width
Trail- 6 in.
Runner Type
Long dual runner 4-bolt w/carbide
INSTRUMENTATION
ZR 9000 RR
Type of Gauge
Deluxe Digital
Speedometer
Digital
Tachometer
Digital
Odometer
Digital
Fuel
Digital
Oil
Indicator Light
Coolant
Digital/Indicator Light
Clock
Digital
Battery Voltage
Digital
Altimeter
Digital
Hours
Digital
FEATURES
ZR 9000 RR
Color
Black/Medium Green
Heat Exchanger
Front/Long Tunnel
Starter
Push-Button Electric Start
Handlebars
Hooked
Lighting
LED w/ Accent Light
Seating
High Performance
Standard Accessories
12V Outlet, Sport Front Bumper, Hand & Thumb Warmers, Team Arctic Handguards, Race Brake Disc, EPS-Standard Steering, Tether Switch, Goggle Holder, Heated Driver Seat, Visor Plug-Ins
Windshield
5.5 in. Race-Height
*Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees and is subject to change.
WARNING: Arctic Cat snowmobiles can be hazardous to operate. For your safety, all riders should read and understand their owner’s manual and safety instructions. Always wear an approved helmet and other safety apparel. Be aware of natural hazards you may encounter and don’t drink and ride. All scenes depicted or described were performed by professional riders under carefully controlled conditions. Never attempt to duplicate these maneuvers or encourage others to do so. Arctic Cat recommends that all operators take a safety training course. For safety and training information, please see your local dealer.
