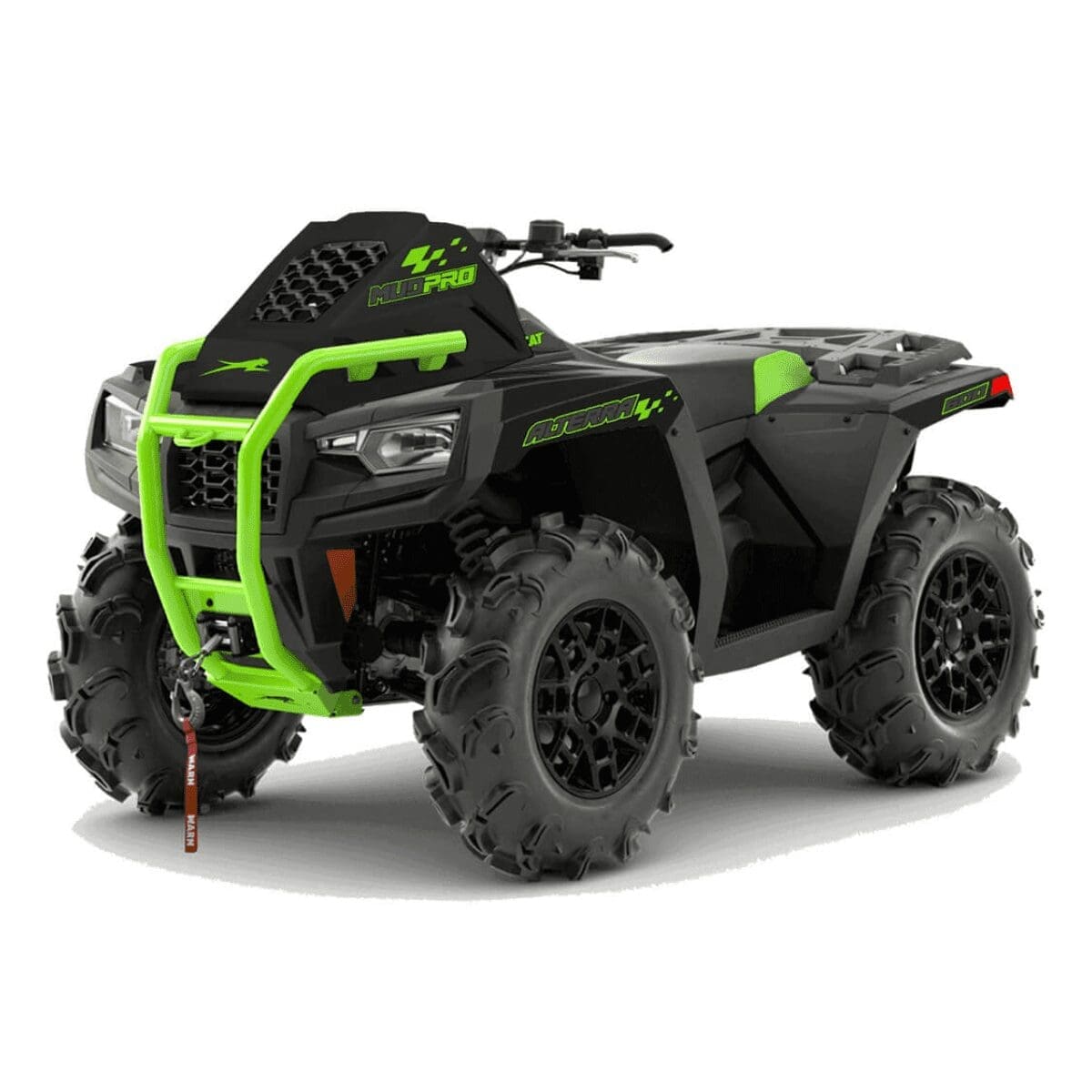

ALTERRA 600 MUD PRO
A LITTLE MUD NEVER HURT
- 597cc EFI Engine
- Relocated Radiator & Snorkels
- 28″ x 9″ Maxxis Zilla Mud Tires
- 3,500 lb. WARN Winch w/Synthetic Rope
LEARN MORE

POWER LIKE NEVER BEFORE

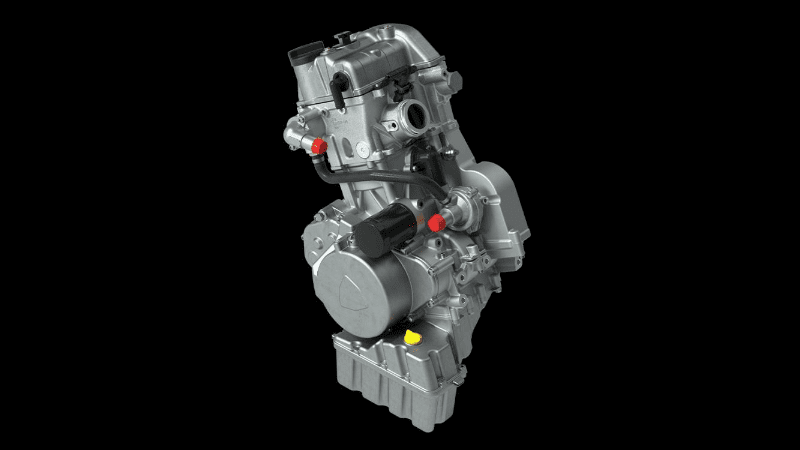

597CC EFI ENGINE
With a powerful 600 class EFI engine built in St. Cloud, MN, the Alterra 600 Mud Pro is built to fuel your sense of adventure. This high-output power will let you explore tougher terrains and achieve more on your ATV.

DIVE ON IN
RELOCATED RADIATOR & SNORKELS
Don’t stall or overheat in the deep mud. The radiator is positioned above where the front rack would sit on a standard Alterra 600, and we added a snorkel system to keep mud out of the critical parts of your ATV.
LEARN MORE

BUILT FOR DEEP MUD
12.5-IN GROUND CLEARANCE
Mud can be deceptive. You never know how deep it actually is. But with the specialized 28-in mud tires, you have the ground clearance to confidently dive in. Paired with arched A-Arms, this ATV offers 12.5 inches of ground clearance.
LEARN MORE

EFFORTLESS HANDLING
ENHANCED SUSPENSION SYSTEM
The enhanced suspension on the Alterra 600 Mud Pro offers a smoother ride and easier steering. You’ll feel the difference offered by larger, upgraded shocks and springs, as well as electronic power steering (EPS).
LEARN MORE

ENHANCED TRACTION
SELECTABLE FRONT LOCKING DIFFERENTIAL
With a selectable front locking differential on the Alterra 600 Mud Pro, you’ll be more in control of how you ride. By simultaneously putting maximum torque to all 4 wheels, your vehicle’s traction will be optimized, letting you handle harder terrains with ease.

KEEP COOL
OPTIMIZED ENGINE ORIENTATION
With the unique engine orientation and exhaust routing, you won’t feel all the heat from your ATV while riding. Instead of focusing on the heat, your attention can stay fixed on your ride.

FOR WORK OR PLAY
NEXT-LEVEL TOWING & WINCH
The Alterra 600 Mud Pro is equipped for hard work as well as a great ride. With a front tow hook and 2-in rear receiver, this ATV can pull 1,050 lbs, and the 3,500-lb WARN winch makes sure you’re ready for the unexpected.

ADAPTS TO YOU
ADJUSTABLE RISER HANDLEBARS
Your ride, your style. With adjustable riser handlebars, your ATV can be easily adapted to however you ride and to your stature. No more hunching over to hold on.

STORE MORE
REAR RACK
Heavy duty doesn’t even begin to cover it. With a spacious rear rack, you can carry 200 lbs of strapped down cargo with you wherever you go. Never leave your gear behind again.

EXTRA PROTECTION
12 MONTH WARRANTY
With a year of rock-solid coverage protecting your ATV, you can have peace of mind on and off the trail.
ENGINE & DRIVETRAIN
|
ALTERRA 600 MUD PRO |
| Engine Type |
Liquid Cooled, Single Cylinder |
| Displacement (cc) |
597cc |
| Drive Train |
CVT – CVTech Trailbloc |
| Drive System |
2WD/4WD Electric Actuation w/Selectable Front Diff Lock/Lower gear Ratio Transaxle |
| Fuel System |
Electronic Fuel Injection (EFI) |
| Gear Selection |
H/L/N/R/P |
| Front Differential |
2WD / 4WD Electric Actuation w/Diff Lock |
| Rear Differential |
Locked |
STEERING & SUSPENSION
|
ALTERRA 600 MUD PRO |
| Steering |
Electronic Power Steering |
| Front Suspension |
Arched Double A-Arm, High Clearance with 8.75 in. (22.2 cm) Travel |
| Rear Suspension |
Arched Double A-Arm, High Clearance with 8.75 in. (22.2 cm) Travel |
| Brake System |
Dual Front Hydraulic Disc, Single Rear Hydraulic Disc |
| Foot Brake |
Foot Operated Rear Brake |
| Parking Brake |
Park in Transmission |
| Front Tires |
Maxxis Zillas 28 x 9-14 |
| Rear Tires |
Maxxis Zillas 28 x 9-14 |
| Wheels |
14-in. Aluminum |
PERFORMANCE
|
ALTERRA 600 MUD PRO |
| Total Capacity |
415 lb (188.2 kg) |
| Front Rack |
N/A |
| Rear Rack |
200 lb (90.7 kg) |
| Towing Capacity |
1,050 lbs (476 kg) |
DIMENSIONS
|
ALTERRA 600 MUD PRO |
| Overall Length |
88.3 in (224.2 cm) |
| Overall Width |
46.5 in (118.1 cm) |
| Overall Height |
51.1 in (129.7 cm) |
| Overall Weight |
892 lbs. (404.6 kg) |
| Wheelbase |
52 in (132 cm) |
| Ground Clearance |
12.8 in (32.5 cm) |
| Fuel Capacity |
4.8 gal (18.2 L) |
| Hitch |
Standard 2-in Receiver |
COLOUR OPTIONS
|
ALTERRA 600 MUD PRO |
| Standard Colors |
Black Magic |
FEATURES
|
ALTERRA 600 MUD PRO |
| Skid Plate |
Full Length |
| Standard Instrumentation |
Multifunctional Digital Gauge |
| Lighting |
Dual High/Low Beam Halogen Headlights with LED Accents, Single LED Brake Light/Tail Light |
| Start Method |
Electric Start |
| Standard Accessories |
Composite Rear Rack, Front and Rear Bumper, Front Tow Hooks, Operator Accessible Storage, Color Matched Cut and Sewn Seat, Raised Steel Footpegs, 3,500-lb. WARN Winch w/Synthetic Rope |
* Vehicle specifications are subject to change.
