Description

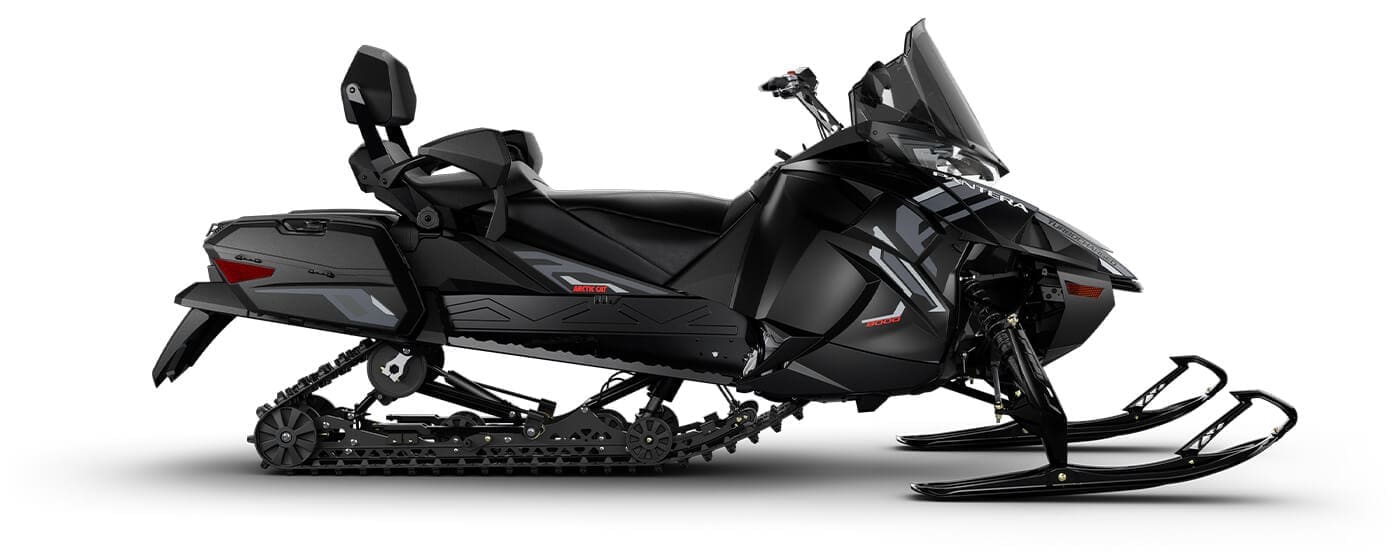

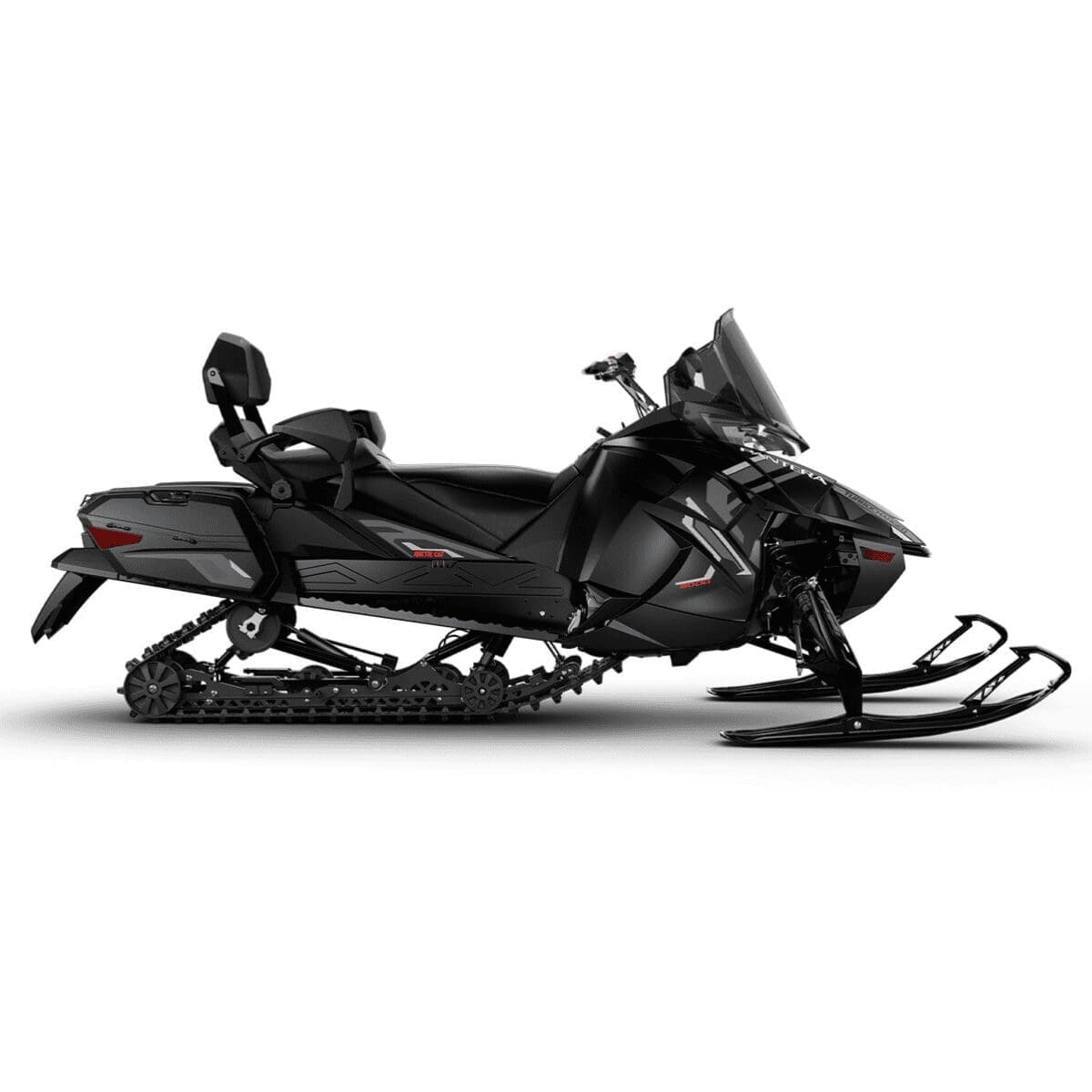

PANTERA 9000
Your First Class Seat
The Pantera® is built for long-distance comfort, loaded with features that make every mile smoother. Heated seats, rear storage and a turbo option mean you and your passenger can chase the horizon in total control.
| 146″/1.25″ |
Ripsaw |
Turn-Key Electric |
ARS |
Black |
| Track/Lug |
Track Type |
Starter |
Suspension |
Color |

LEARN MORE
Legendary Power
9000-Series Turbocharged Engine
Now the Pantera® hits the snow with the biggest, most powerful engine on the trail: the 9000-Series C-TEC4™ turbocharged powerhouse, the same engine as the ZR® Thundercat®. With this much power, touring is about to become a bigger adventure than ever.
LEARN MORE

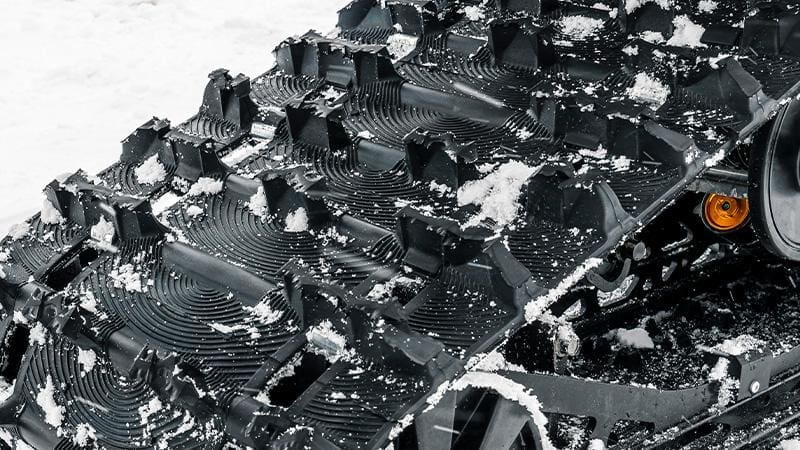

Unmatched Handling
Ripsaw™ Track
The Ripsaw’s angled 1.25-in lugs help the Pantera grip the trail. The chopped design provides unbelievable levels of handling and acceleration.

Ride. Repeat. No Rest Required.
ELECTRONIC POWER STEERING
Electronic Power Steering (EPS) allows you to extend your ride time with a smoother experience through less bar movement, less trail feedback and less impact. Discover why EPS isn’t just a nice-to-have — it’s vital for unlocking more ride time and ride quality, regardless of your experience level.
LEARN MORE
Confidence-Inspiring Handling
ARS II FRONT SUSPENSION
This innovative front suspension is built to optimize handling. With increased cornering bite and ground clearance, it’s easier than ever to tame the trails. More control means less fatigue, so you’ll be able to go farther on the Pantera.

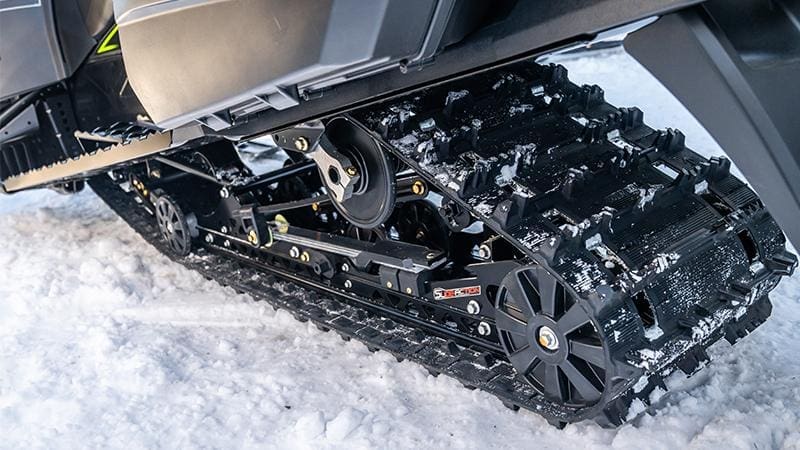

No Rough Rides
Slide-Action™ Rear Suspension
Rough rides are a thing of the past. With this industry-exclusive design that keeps the front arm engaged while the rear arm compresses, you’ll hardly feel a bump in the trail.

SHARE THE RIDE IN COMFORT
HEATED 2-UP SEATS
These purposefully-designed two-up seats are built with the correct height placement and balance for two riders and will keep riders warm with their standard heating mechanism. With seats like these, you’ll be out on the trails all day long.

EXTRA WIND PROTECTION
MID-HEIGHT WINDSHIELD
This mid-height windshield blocks harsh winds, making it easier than ever to get the most out of every ride.

BRIGHTEN ANY RIDE
LED HEADLIGHT
A premium LED headlight is crucial for those night rides. Equipped with both high and low-beams, the headlight casts an LED light pattern with great range and width.

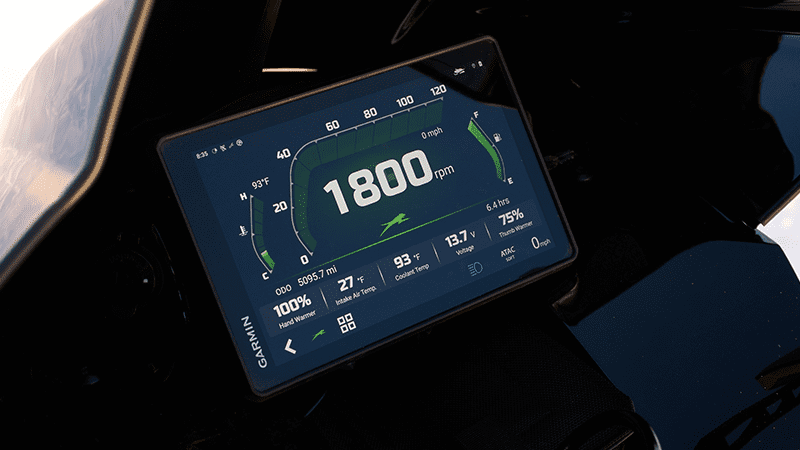

NAVIGATION AT YOUR FINGERTIPS
G8 DIGITAL DISPLAY
The Arctic Cat G8 digital display, powered by Garmin, offers seamless integration with your sled. A built-in GPS with preloaded trail maps, customizable data fields and phone connectivity are just some of the features that make G8 essential for every ride. Plus, the group ride functionality utilizes satellite or cellular data, dependent on region, to share the ride with up to 15 people.

Effortless Support
IFP Shocks
You’ll feel the difference in every ride with premium, internal floating piston (IFP) shocks. These shocks will dampen the toughest terrain and offer increased durability, allowing you to maximize your performance.
ENGINE
|
PANTERA 9000 |
| Engine Type |
9000 Turbo, 4-Stroke |
| Displacement (cc) |
998cc |
| Cooling |
Liquid |
| Cylinders |
3-Turbocharged |
| Bore x Stroke (mm) |
80 x 66.2 mm |
| Lubrication |
Dry Sump |
| Ignition |
Digital Controlled Coil Induction |
| Engine Starter Output |
545W @ 5000 RPM |
| Fuel Delivery |
Electronic Fuel Injected (EFI) |
| Exhaust |
Turbocharger w/ Stainless Steel Muffler |
| Fuel Capacity |
15 gal |
| Oil System Capacity |
3.8 qt |
| Coolant System Capacity |
6.4 qt |
| Minimum Octane |
91 |
POWERTRAIN
|
PANTERA 9000 |
| Drive Clutch |
ADAPT |
| Driven Clutch |
ADAPT |
| Drive System |
Arctic Drive System |
| Brakes |
Stealth Hydraulic Master Cylinder |
| Clutch Calibration |
0-10,000 ft |
| Gearing |
22/48 |
| Chain Pitch |
90 |
| Track Drive Sprocket |
9 Tooth, 2.86 Pitch, Exvolute |
| Reverse |
Push-Button |
SUSPENSION
|
PANTERA 9000 |
| Front Suspension |
ARS |
| Ski Shocks |
Arctic Cat IFP 1.5 |
| Sway Bar |
Standard |
| Front Travel |
9 in. |
| Rear Suspension |
SLIDE-ACTION Rear Suspension, Coupling Blocks, Torque-Sensing Link Rear Arm, Adjustable Torsion Springs & Fiberglass Overload Springs |
| Front Track Shock |
Arctic Cat IFP 1.5 |
| Rear Track Shock |
Arctic Cat IFP 1.5 |
| Rear Travel |
13.5 in. |
DIMENSIONS
|
PANTERA 9000 |
| Overall Chassis Length |
129 in. |
| Overall Chassis Width |
48-49 in |
| Overall Chassis Height |
51 in. |
| Track Type |
Ripsaw |
| Track Width |
15 in. |
| Track Length |
146 in. |
| Lug |
1.25 in. |
| Pitch |
2.86 in. |
| Ski Stance |
42-43 in. Adjustable |
| Ski Type/Width |
ProTour- 6 in. |
| Runner Type |
Twin Split |
INSTRUMENTATION
|
PANTERA 9000 |
| Type of Gauge |
G8 (CAN w/o Group Ride) |
| Speedometer |
Digital |
| Tachometer |
Digital |
| Odometer |
Digital |
| Fuel |
Digital |
| Oil |
Indicator Light |
| Coolant |
Digital/Indicator Light |
| Clock |
Digital |
| Battery Voltage |
Digital |
| Altimeter |
Digital |
| Hours |
Digital |
FEATURES
|
PANTERA 9000 |
| Color |
Black |
| Heat Exchanger |
Front/Long Tunnel |
| Starter |
Push-Button Electric Start |
| Handlebars |
Hooked |
| Lighting |
LED w/ Accent Light |
| Seating |
Touring |
| Standard Accessories |
12V Outlet, Adjustable Backrest, Sport Front Bumper, Hand & Thumb Warmers, Goggle Holder, Heated Seats, Brake Disc, Mirrors, Electronic Power Steering, Passenger Hand Warmers, Passenger Footrests, Passenger Seat, Passenger Wind Deflectors, Tether Switch, Visor Plug-Ins, 16.4L Rear Storage Compartment & Locking Detachable Storage Cases |
| Windshield |
14 in. Mid-Height |
*Vehicle specifications are subject to change.
