Description

ADVENTURE FURTHER
PROWLER XT
- Ultra-Quiet 812CC EFI 3-Cylinder Engine
- 2WD/4WD Electric Actuation with Selectable Rear Differential Lock
- 27-in Tires with 14-in Aluminum Wheels
- 12.5-in of Ground Clearance
- 4,500 lb WARN Winch w/Synthetic Rope
- 3 Passenger Bench Seating w/Behind-Seat Storage
LEARN MORE
QUIET YET POWERFUL ENGINE
FOCUS ON THE RIDE
With CVTech TrailBloc clutches, you get 48-lb-ft of torque without the noise, offering a smooth takeoff with every ride. Plus, the performance-spec clutching reacts quickly for unmatched throttle response.

TRAIL-TUNED SUSPENSION
INCREASE YOUR CONTROL
The stock ride quality of the Prowler suspension has been designed with a lift kit to achieve a high ground clearance that will let you navigate tough trails with ease. In both loaded and unloaded driving conditions, this side-by-side handles more aggressive terrain easier with less bounce and increased control, giving you an all around better ride.

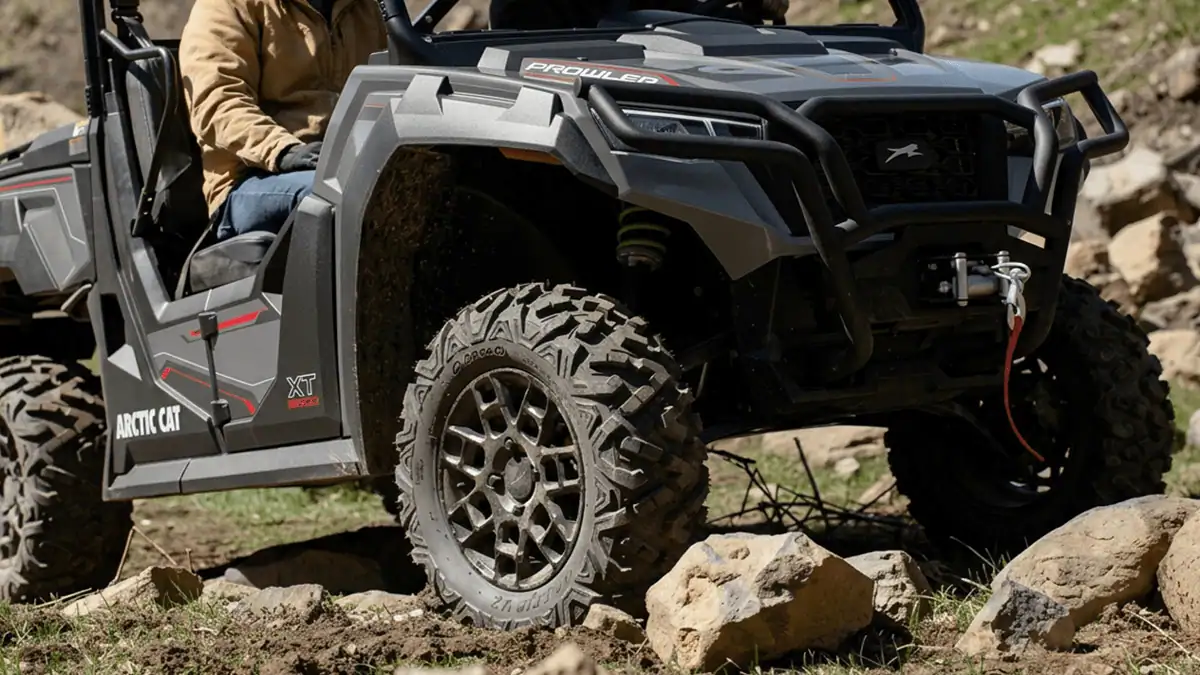

UPGRADED TRANSAXLE & LOCKING REAR DIFFERENTIAL
INCREASED STRENGTH AND PERFORMANCE
With an upgraded transaxle for extra durability and a selectable locking rear differential, you’ll have the flexibility to adjust your traction based on the terrain.

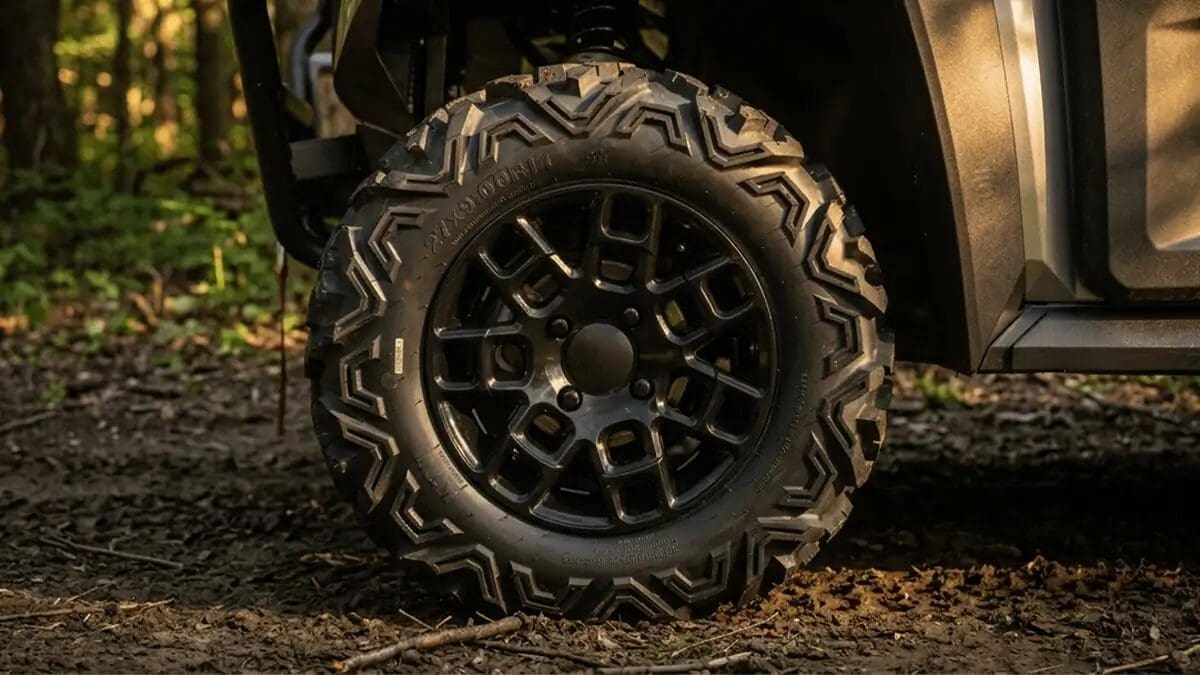

14-INCH ALUMINUM
WHEELS AND 27-INCH TIRES ELEVATE YOUR RIDE
With 14-in aluminum rims and 27-in tires, your Prowler is prepared for your next trek with style and durability, offering 12.5 inches of ground clearance.

NEXT-LEVEL STORAGE CAPACITY
MAKING WORK EASY
Don’t leave anything behind on long riding days. The Prowler side-by-side has space for everything you need with loads of built-in storage space, and with a 1000 lb cargo box capacity, you have room for whatever cargo you need to haul.

3-PASSENGER SEATING
3 TIMES THE FUN
It’s always more fun to hit the trails with company. The Prowler side by side offers 3-passenger seating for the adventures you don’t want to have alone. Bench seating can also be removed for additional storage space for the essentials on a long riding day.

UPGRADE YOUR RIDE
MORE THAN 50 CUSTOM-BUILT ACCESSORIES
The Prowler was designed to take on any challenge you give it — why not customize it further? With countless ways to make this side by side your own, our 50 custom-built accessories are sure to bring the Prowler to the next level.

TACKLE THE TO-DO LIST
2000-LB TOWING CAPACITY & WINCH
Your side-by-side should be able to handle big challenges. That’s why the Prowler was built to tow heavy loads, so you can haul more gear and move more obstacles. Plus, with a 4,500-lb WARN winch, you’re ready for anything.

STAY PROTECTED
12-MONTH WARRANTY
To give you peace of mind while at work and on the trail, we’ve provided the Prowler side-by-side with 12 months of rock-solid coverage so you can stay protected in all your adventures.
ENGINE & DRIVETRAIN
|
PROWLER XT |
| Engine Type |
Liquid-Cooled 4-Stroke, 3 Cylinder |
|
|
| Displacement |
812cc |
| Drive Train |
Automatic CVT – TrailBloc |
| Drive System |
2 WD / 4WD Electric Actuation, with Selectable Rear Diff Lock |
| Fuel System |
EFI (Electronic Fuel Injection) |
| Gear Selection |
H/L/N/R/P |
| Front Differential |
2WD / 4WD Electric Actuation with selectable rear Diff lock |
| Rear Differential |
Selectable Locking |
STEERING & SUSPENSION
|
PROWLER XT |
| Steering |
Electronic Power Steering |
| Front Suspension |
Double A-Arm with 10-in. (25.4 cm) Travel |
| Rear Suspension |
Double A-Arm with 9.5 in. (24.1 cm) Travel |
| Shock Absorbers |
Twin Tube |
| Brake System |
Four-Wheel Hydraulic Disc |
| Parking Brake |
Park in Transmission |
| Front Tires |
27 x 9-14 |
| Rear Tires |
27 x 11-14 |
| Wheels |
Aluminum |
PERFORMANCE
|
PROWLER XT |
| Total Capacity |
2,000 lbs (907.2 kg) |
| Bed Capacity |
1,000 lbs (453.6 kg) |
| Towing Capacity |
2,000 lbs (907.2 kg) |
DIMENSIONS
|
PROWLER XT |
| Overall Length |
124.25 in. (315.6 cm) |
| Overall Width |
63 in. (160 cm) |
| Overall Height |
78 in. (198 cm) |
| Overall Weight |
1,718 lbs (779.3 kg) with 52 lbs (23.6 kg) accessories |
| Wheelbase |
85 in. (215.9 cm) |
| Fuel Capacity |
9.3 gal (35.2 L) |
| Ground Clearance |
12.5 in. (31.75 cm) |
| Bed Dimensions (L x W x H) |
40.5 x 54 x 11.5 in. (102.9 x 137.2 x 29.2 cm) |
| Hitch |
Standard 2-in. Receiver |
COLOUR OPTIONS
|
PROWLER XT |
| Standard Colors |
Black Magic, Tungsten |
FEATURES
|
PROWLER XT |
| Skid Plate |
Full Length |
| Standard Instrumentation |
Sport Gauge |
| Lighting |
Dual Halogen Headlights with LED Accents and LED Brake/Tail Lights |
| Start Method |
Electric Start |
| Seating |
Bench Seat, 3-Passenger with Removable Passenger Seats, 3 Point Seat Belts |
| Storage |
Cargo Dump Bed, Glove Box, Behind-Seat Storage |
| Standard Accessories |
Made for riders 16 years of age and older. Arctic Cat recommends that all riders take a training course and read their owner’s manual thoroughly. |
| Important Safety Information |
Premium Front Bumper, Standard Doors |
* Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees.
WARNING: Arctic Cat® vehicles can be hazardous to operate. For your safety, all riders should always wear a seat belt (Side-by-Sides), helmet, eye protection, and protective clothing. Riding and alcohol/drugs don’t mix. Arctic Cat recommends that all operators take a safety training course. For safety and training information, please see your dealer or call 1-800-887-2887 (ATVs) or visit www.ROHVA.org (Side-by-Sides). Arctic Cat vehicles are for operators age 16 years and older with a valid driver’s license, except the Alterra 90, which is intended for operators 10 years of age and older. ©2020 Textron Specialized Vehicles Inc. All rights reserved.
