Description

SHARE THE RIDE – AND THE WORKLOAD
PROWLER XT CREW
- Ultra-Quiet 812CC EFI 3-Cylinder Engine
- 2WD/4WD Electric Actuation with Selectable Rear Differential Lock
- 27-in Tires with 14-in Aluminum Wheels
- 12.5-in of Ground Clearance
- 4,500 lb WARN Winch w/Synthetic Rope
- 6 Passenger Bench Seating w/Behind-Seat Storage
LEARN MORE
FOCUS ON THE RIDE
QUIET YET POWERFUL ENGINE
With CVTech TrailBloc clutches, you get 50hp and 48-lb-ft of torque without the noise, offering a smooth takeoff with every ride. Plus, the performance-spec clutching reacts quickly for unmatched throttle response.
LEARN MORE

MAKING WORK EASY
NEXT-LEVEL STORAGE CAPACITY
Don’t leave anything behind on long riding days. The Prowler XT Crew side-by-side has space for everything you need with loads of built-in storage space, and with a 1000 lb cargo box capacity, you have room for whatever cargo you need to haul.
LEARN MORE

MORE ROOM, MORE FUN
6-PASSENGER SEATING
It’s always more fun to hit the trails with company. The Prowler XT Crew side-by-side offers 6-passenger seating for the adventures you don’t want to have alone. Bench seating can also be removed for additional storage space for the essentials on a long riding day.
INCREASE YOUR CONTROL
TRAIL-TUNED SUSPENSION
The stock ride quality of the Prowler XT Crew suspension has been designed with a lift kit to achieve a high ground clearance that will let you navigate tough trails with ease. In both loaded and unloaded driving conditions, this side-by-side handles more aggressive terrain easier with less bounce and increased control, giving you an all around better ride.

UPGRADE YOUR RIDE

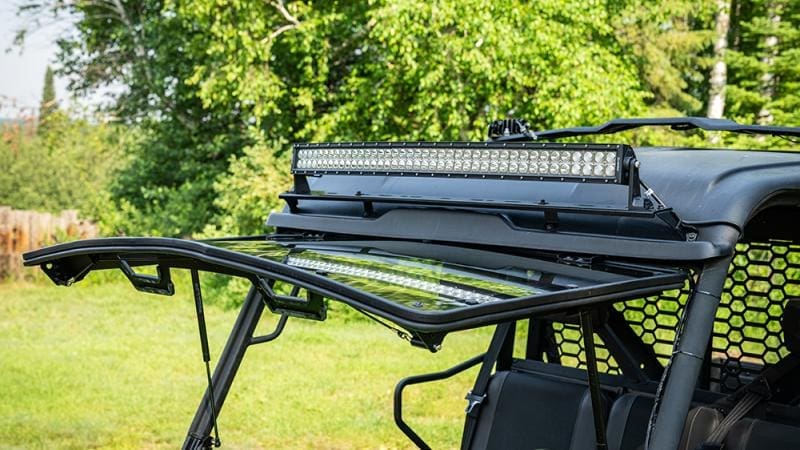

MORE THAN 50 CUSTOM-BUILT ACCESSORIES
The Prowler XT Crew was designed to take on any challenge you give it — why not customize it further? With countless ways to make this side-by-side your own, our 50 custom-built accessories are sure to bring the Prowler XT Crew to the next level.
LEARN MORE

TACKLE THE TO-DO LIST
2000-LB TOWING CAPACITY
Your side-by-side should be able to handle big challenges. That’s why the Prowler XT Crew was built to tow heavy loads, so you can haul more gear and move more obstacles. Plus, with a 4,500-lb WARN winch, you’re ready for anything.
INCREASED STRENGTH AND PERFORMANCE
UPGRADED TRANSAXLE & LOCKING REAR DIFFERENTIAL
With an upgraded transaxle for extra durability and a selectable locking rear differential, you’ll have the flexibility to adjust your traction based on the terrain.

EASY TO SERVICE
TOOLLESS ACCESS PANELS
We’ve made it easier than ever to service your Prowler Pro Crew with panels that can be quickly removed. And keeping your vehicle maintained means more time to hit the trails.

STAY PROTECTED
18-MONTH WARRANTY
To give you peace of mind while at work and on the trail, we’ve provided the Prowler XT Crew side by side with 18 months of rock-solid coverage so you can stay protected in all your adventures.

ELEVATE YOUR RIDE
27-IN TIRES AND 14-IN STEEL WHEELS
With bigger tires and tougher wheels, your Prowler XT Crew brings style, durability and 12.5 inches of ground clearance to every trek.
ENGINE & DRIVETRAIN
|
PROWLER XT CREW |
| Engine Type |
Liquid-Cooled 4-Stroke, 3 Cylinder |
| Horsepower |
50HP |
| Displacement |
812cc |
| Drive Train |
CVT – CVTech Trailbloc |
| Drive System |
2 WD / 4WD Electric Actuation, with Selectable Rear Diff Lock |
| Fuel System |
EFI (Electronic Fuel Injection) |
| Gear Selection |
H/L/N/R/P |
| Front Differential |
2WD / 4WD Open |
| Rear Differential |
Selectable Locking |
STEERING & SUSPENSION
|
PROWLER XT CREW |
| Steering |
Electronic Power Steering |
| Front Suspension |
Double A-Arm with 10-in. (25.4 cm) Travel |
| Rear Suspension |
Double A-Arm with 9.5-in. (24 cm) Travel |
| Shock Absorbers |
Twin Tube |
| Parking Brake |
Four-Wheel Hydraulic Disc |
| Brake System |
Park in Transmission |
| Front Tires |
27 x 9-14 |
| Rear Tires |
27 x 11-14 |
| Wheels |
Aluminum |
PERFORMANCE
|
PROWLER XT CREW |
| Total Capacity |
2,000 lbs (907.2 kg) |
| Bed Capacity |
1,000 lbs (453.6 kg) |
| Towing Capacity |
2,000 lbs (907.2 kg) |
DIMENSIONS
|
PROWLER XT CREW |
| Overall Length |
158 in. (401.3 cm) |
| Overall Width |
63 in. (160 cm) |
| Overall Height |
78 in. (198 cm) |
| Overall Weight |
1,992 lbs (903.5 kg) |
| Wheelbase |
118.5 in. (301 cm) |
| Seat Height |
31.25 in. (79.4 cm) |
| Fuel Capacity |
9.3 gal (35.2 L) |
| Ground Clearance |
12.5 in. (31.75 cm) |
| Bed Dimensions (L x W x H) |
40.5 x 54 x 11.5 in. (102.9 x 137.2 x 29.2 cm) |
| Hitch |
Standard 2-in. Receiver |
COLOUR OPTIONS
|
PROWLER XT CREW |
| Standard Colors |

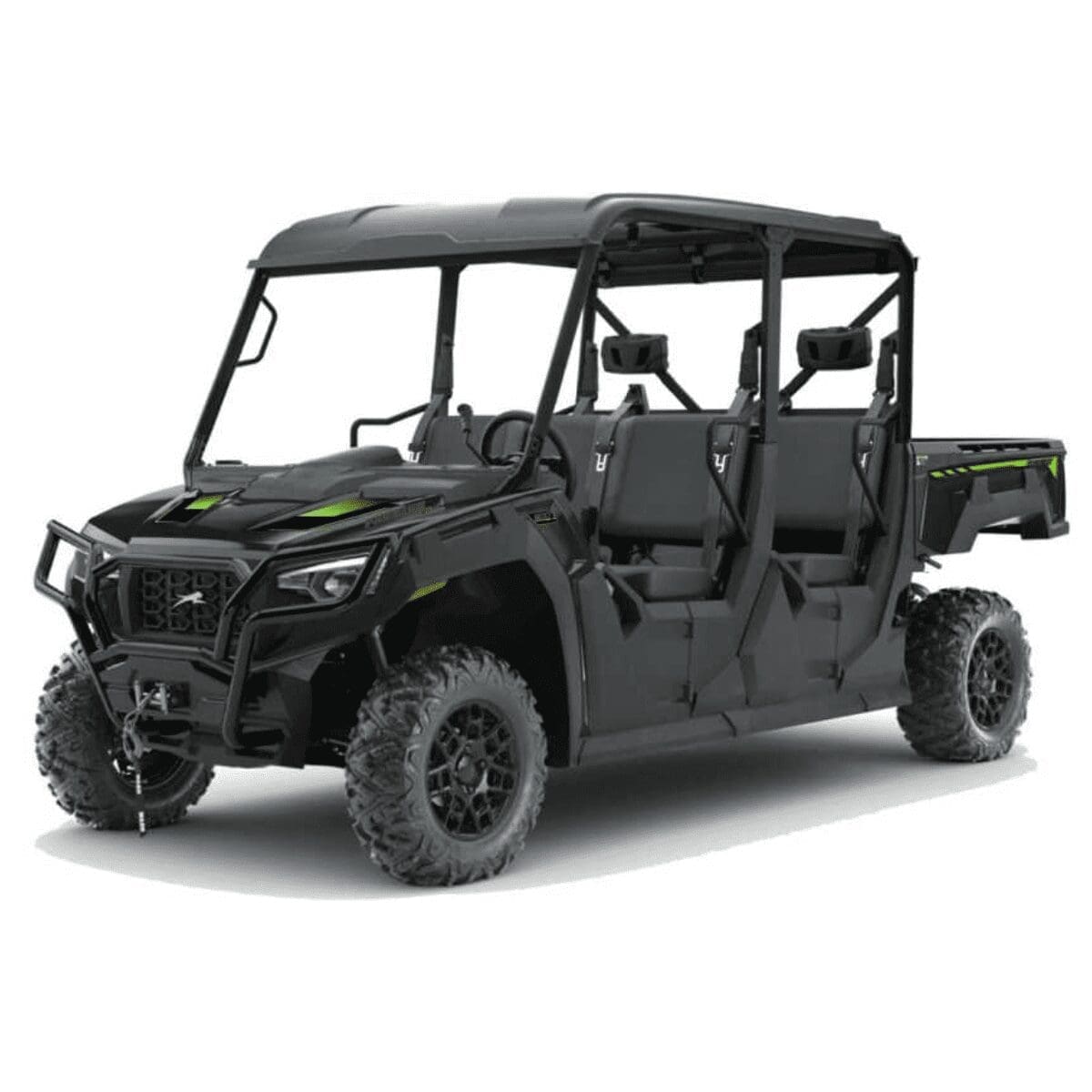

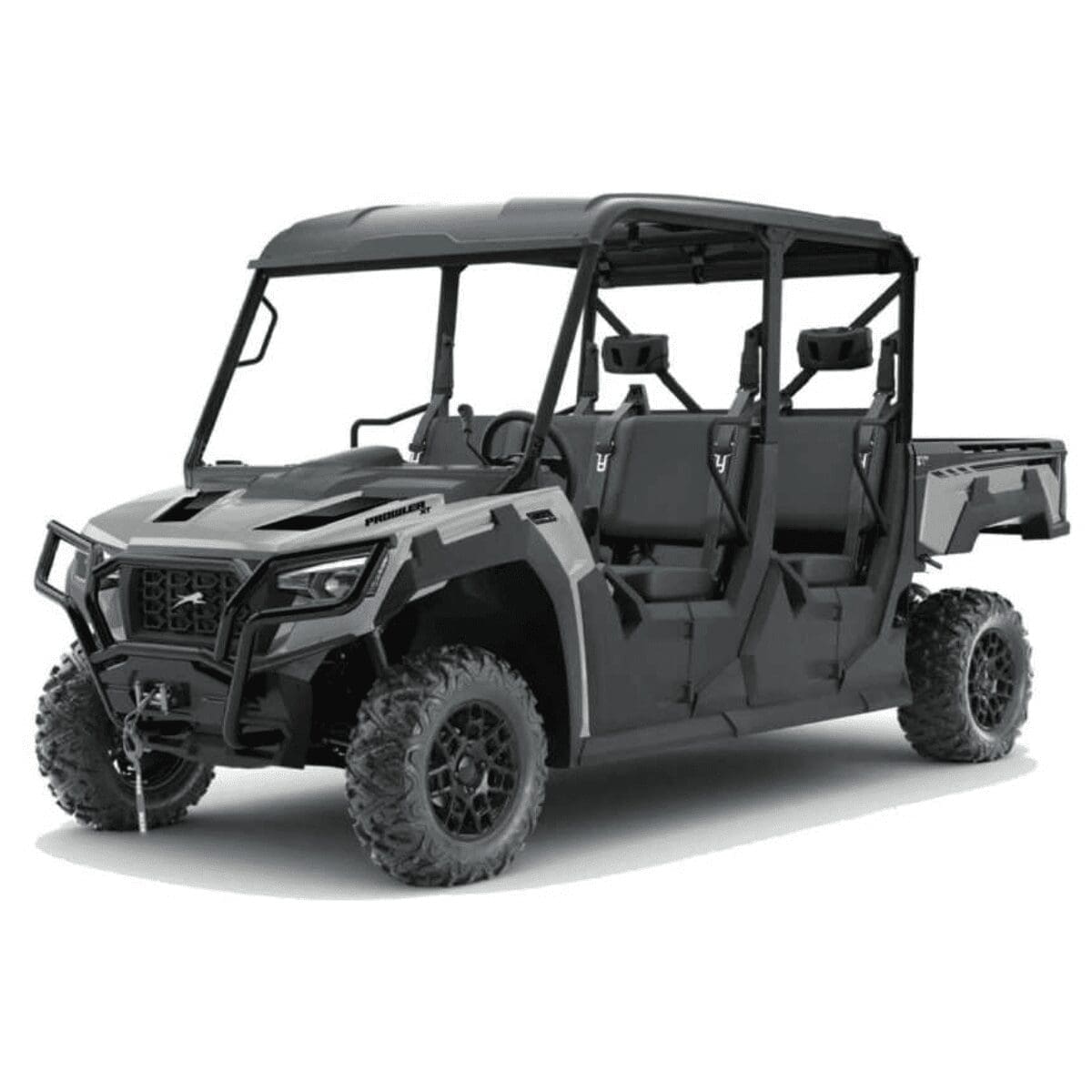

Black Magic, Tungsten |
FEATURES
|
PROWLER XT CREW |
| Skid Plate |
Full Length |
| Standard Instrumentation |
Multifuction Digital Gauge |
| Lighting |
Dual High/Low Beam Halogen Headlights with LED Accents and Dual LED Brake Lights/Tail Lights |
| Start Method |
Electric Start |
| Seating |
Bench Seat, 6-Passenger with Removable Passenger Seats, 3 Point Seat Belts |
| Storage |
Cargo Dump Bed, Glove Box, Behind-Seat Storage |
| Additional Features |
Premium Bumper, Standard Doors, Color Matched Springs |
| Standard Accessories |
4,500-lb WARN Winch w/Synthetic Rope, Roof |
* Vehicle specifications are subject to change.
*Price includes a one year warranty. Price does not include freight or set-up fees.
