0704-892

Suspension Torsion Spring, RH #0704-892

$89.00

EACH

Left-Hand Twin: If you are replacing them as a pair, the matching left-hand side spring is part number 0704-893.

#0704-892

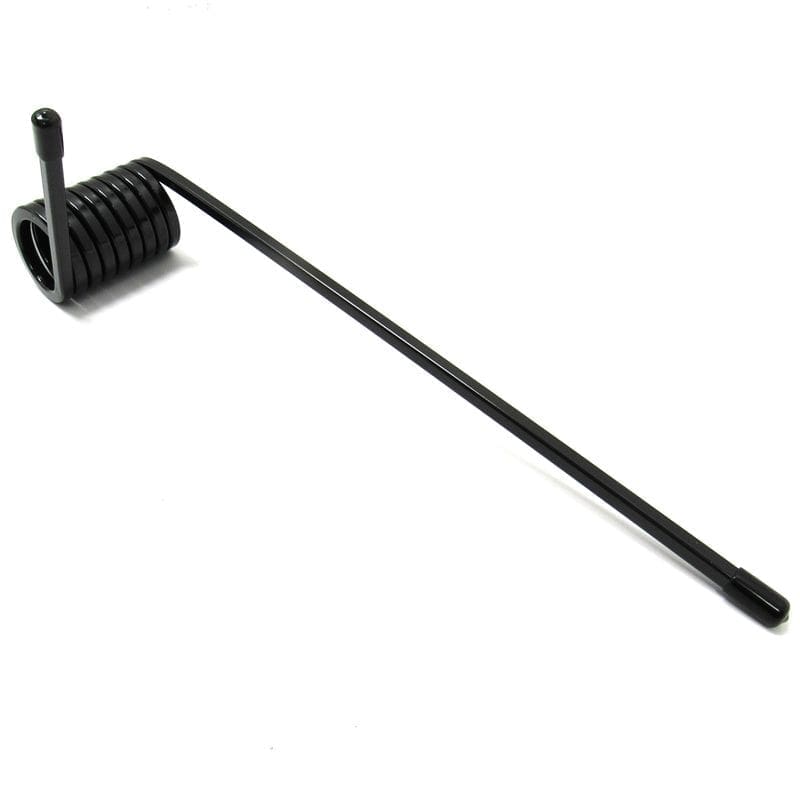

The Arctic Cat part number 0704-892 is a factory OEM Rear Suspension Torsion Spring (Right Hand side) painted black.

SKU: 0704-892 Category: Tags: ,

Description

Part Specifications:
According to factory charts from Arctic Chat, this square-wire torsion spring features the following dimensions:

  • Wire Diameter: 0.405″
  • Angle: 75°
  • Coils: 8.75
  • Coil Width: 4.32″
  • Lengths: 19.0″ x 5.5″
  • Spring Type: Square
Compatibility & Supersession:
  • Superseded Part Number: This item has been superceded by or replaces part number 1604-818.
  • Common Fitments: It was famously equipped on early 2000s models, such as the 2002 Arctic Cat ZR 600 and ZL 600 snowmobiles.
