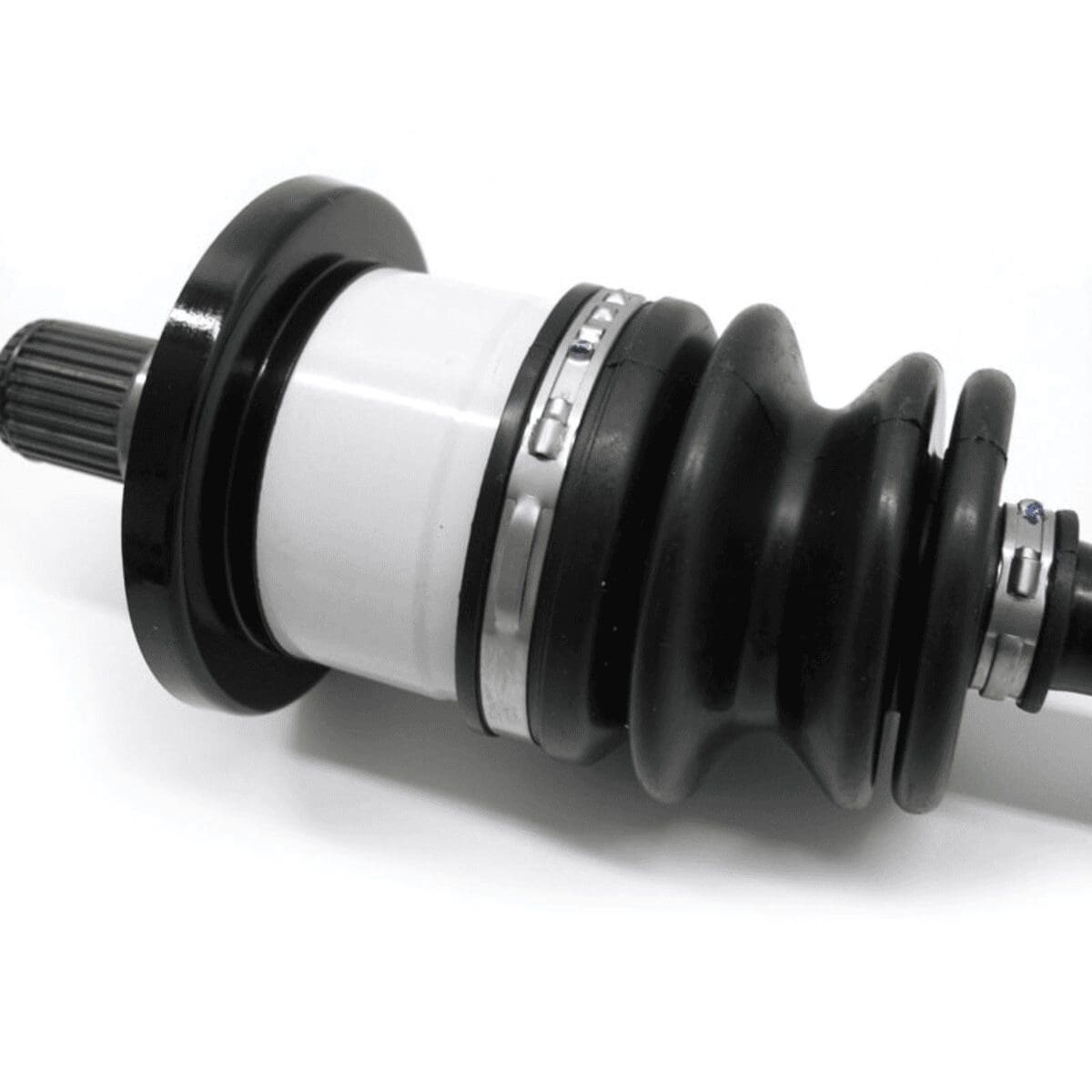

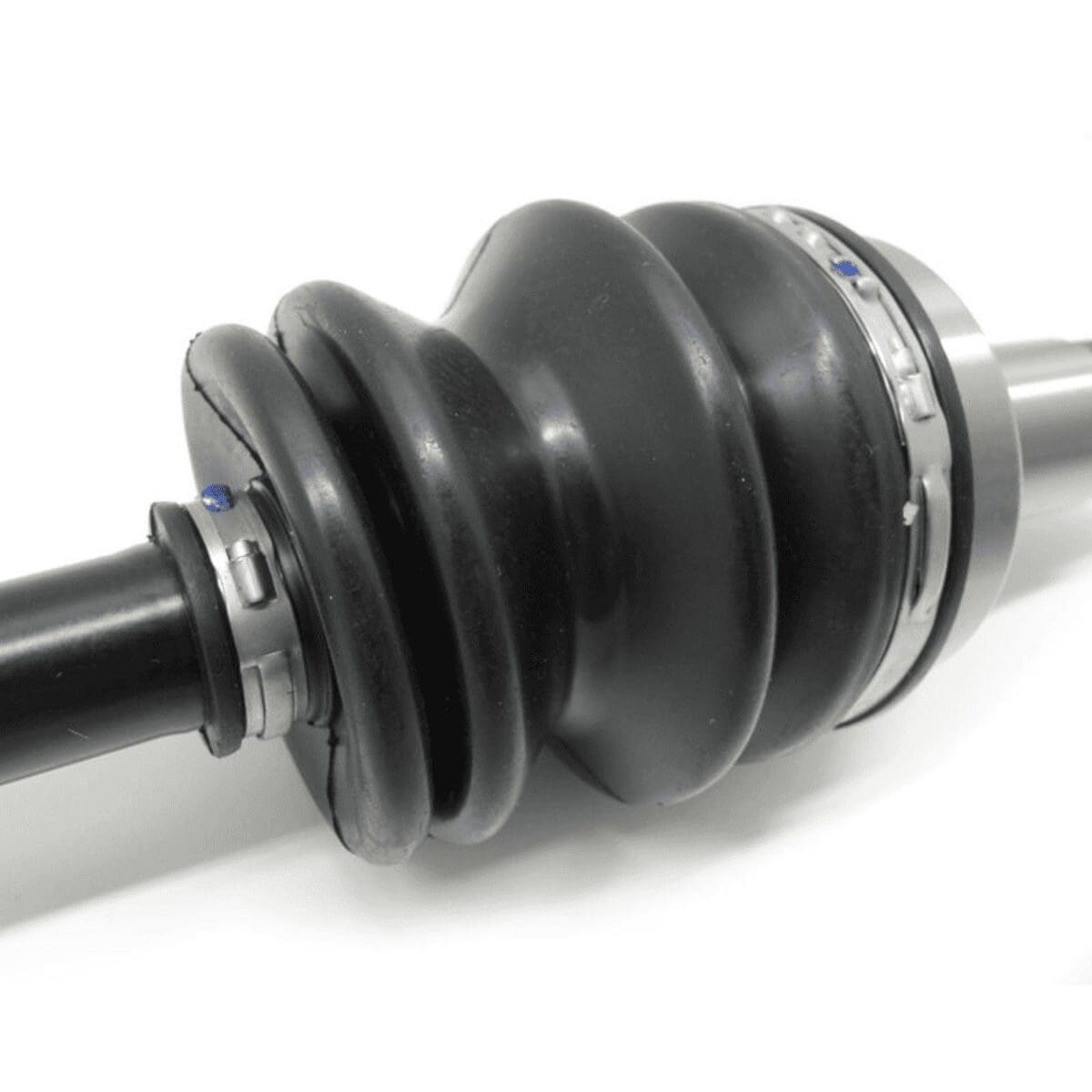

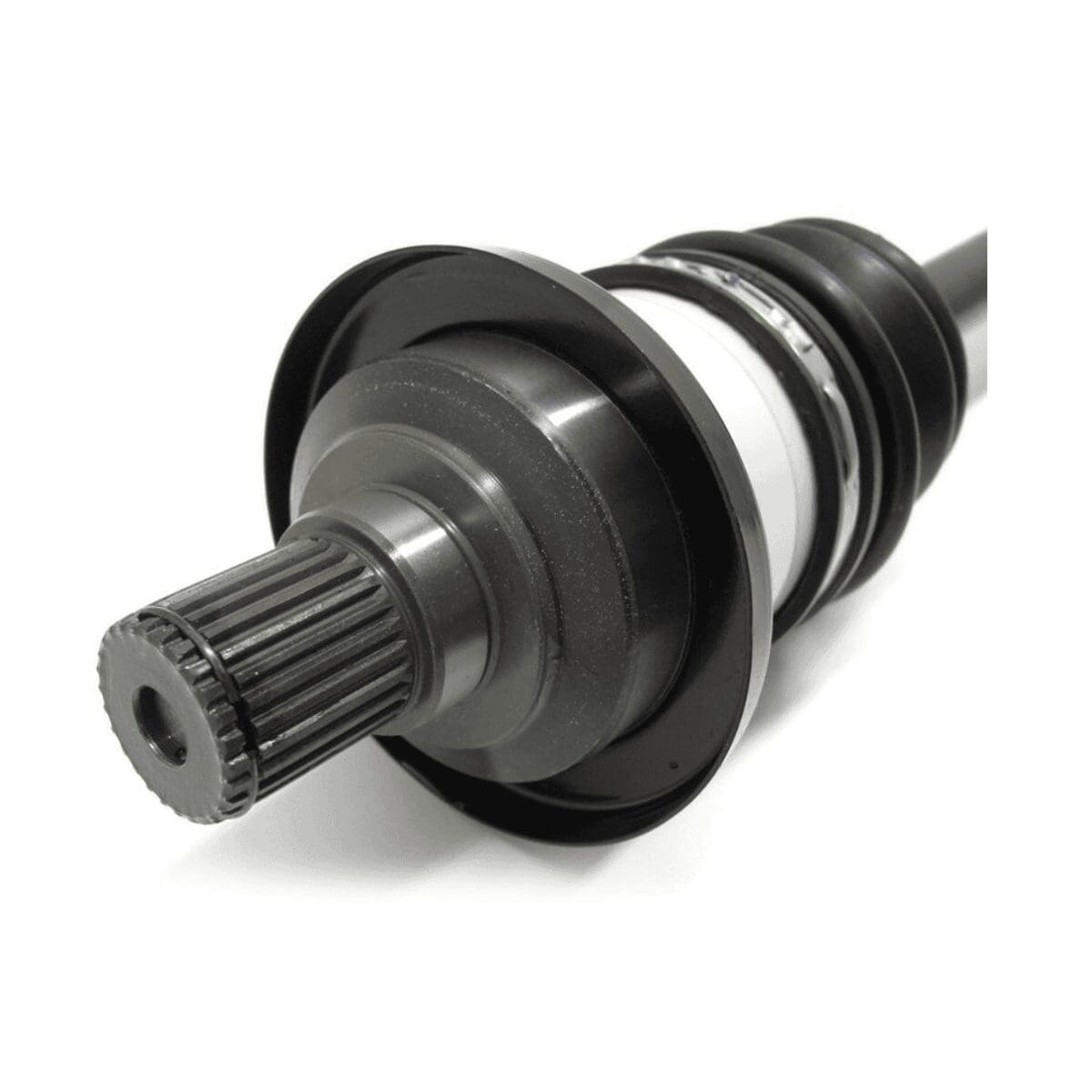

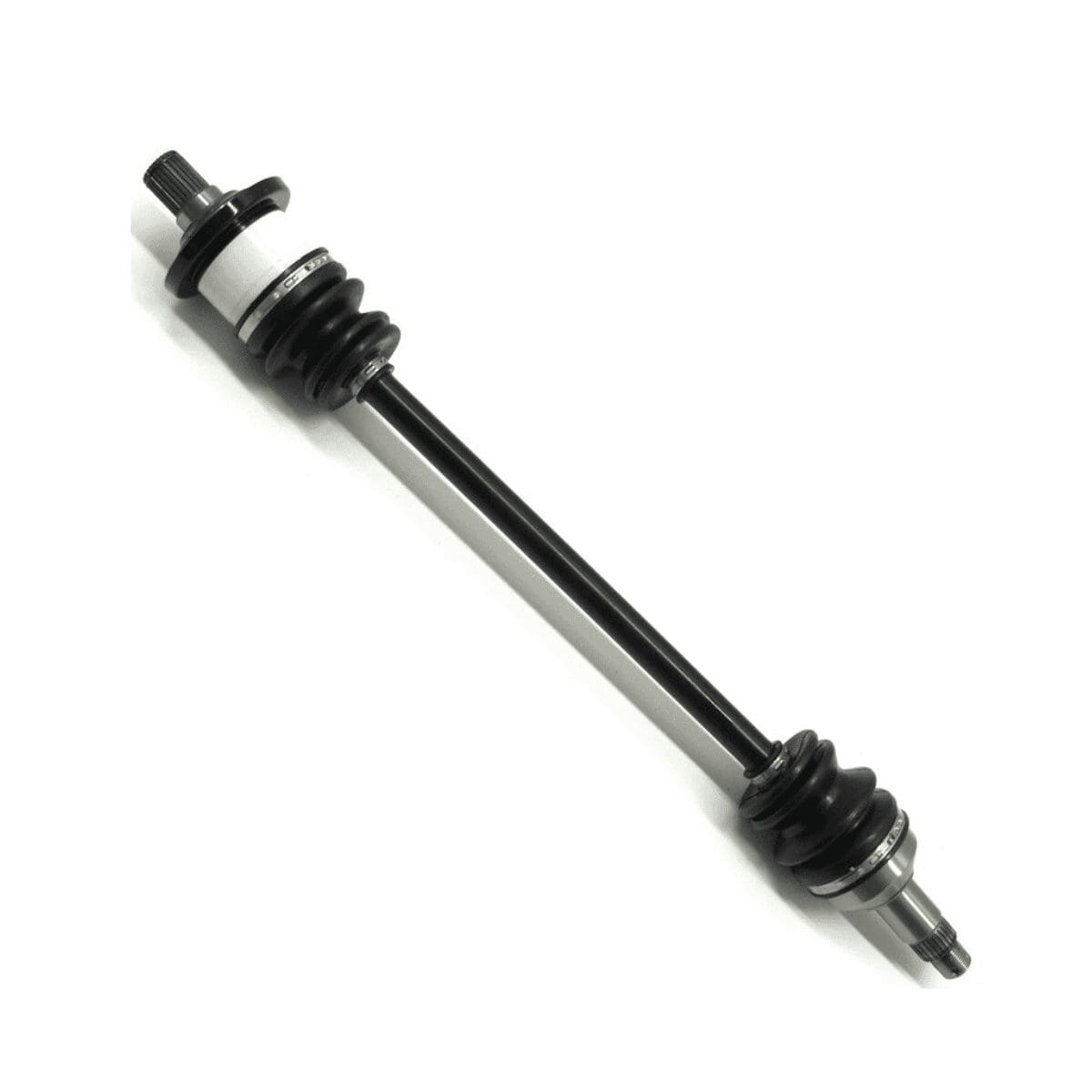

OEM Locking Rear Drive Axle CV Halfshaft Kit, #1436-411

$395.00

#1436-411

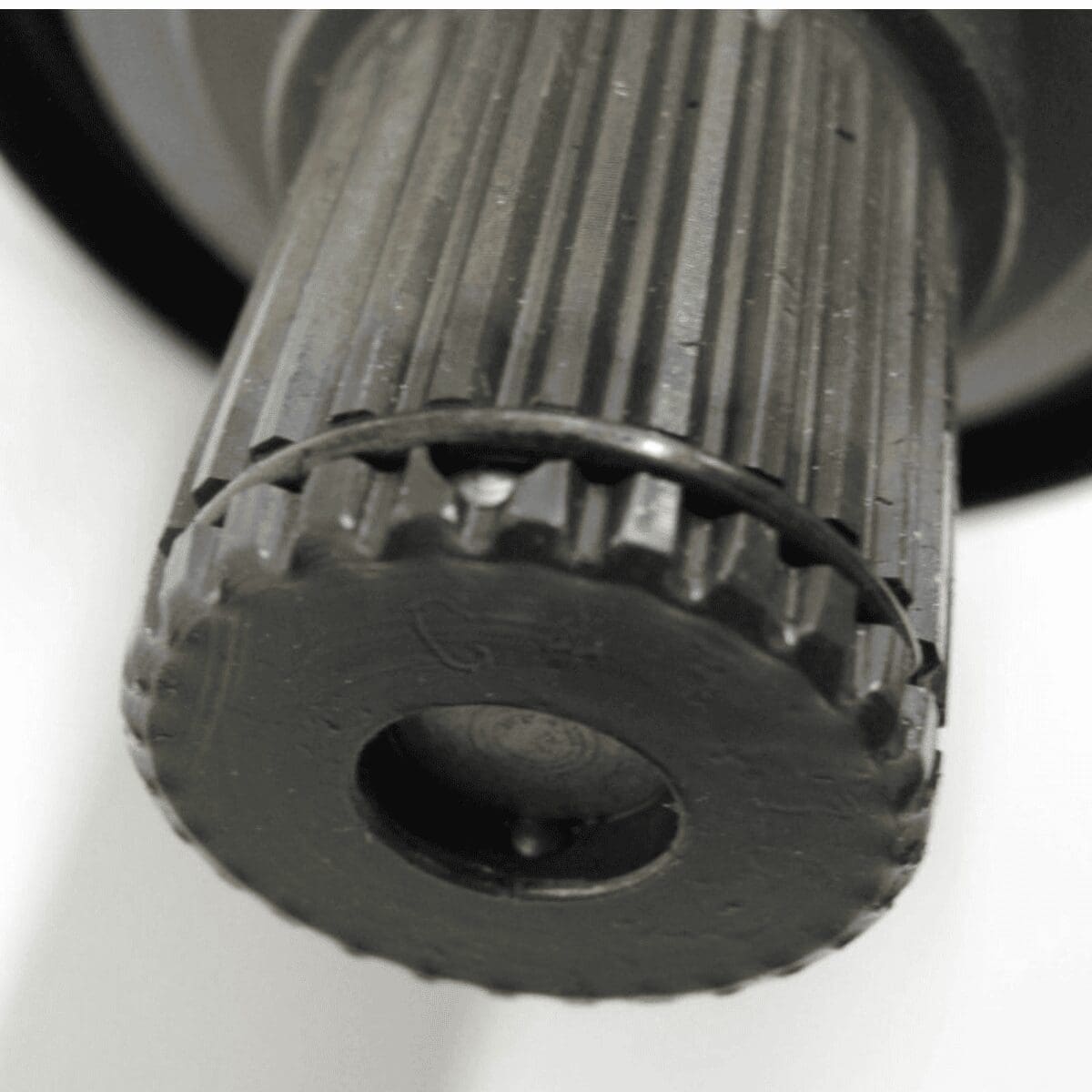

The Arctic Cat part number 1436-411 refers to an OEM Locking Rear Drive Axle CV Halfshaft Kit. It is an updated version of the shaft that features a specialized locking circlip on the gearcase end to ensure the axle does not pop out during vehicle operation. It can be used interchangeably on either the rear left or rear right side of the vehicle.

SKU: 1436-411  Category: Tags: ,

Description

Vehicle Fitment
This axle is designed specifically for 2006–2015 Arctic Cat Prowler Side-by-Side (SxS / UTV) models, including:

  • Prowler 550 / XT 550 (2009–2014)
  • Prowler 650 / XT 650 (2006–2009)
  • Prowler XTX 700 / HDX 700 (2009–2015)
  • Prowler HDX 500 (2014–2015)
  • Prowler XTZ 1000 (2009–2014)
Technical Specifications
  • Compressed Length: 662 mm (approximately 25.94 inches)
  • Inboard Spline Count: 27 Teeth
  • Outboard Spline Count: 27 Teeth
  • Thread Measurement: M22 x 1.5
  • OEM Interchange Numbers: Replaces previous Arctic Cat part numbers 0502-740, 1502-346, 1502-562, 1502-640, 1502-668, and 1502-801.
